Front Spring
LA 5310-A
Spring (front)-identification markings-Pink paint
stripe
2
LA, LE except 76
52-55
LA 5310-C
Spring (front)-heavy duty-identification markings
Blue paint stripe-Std. for 76 model only
2
LA, LE
52-55
LA 5310-D
Spring (front)-heavy duty-identification markings
Gray paint stripe
2
LA, LE
52-55
OM 5334
Liner (rear spring clamp)-Rubber-cut to length
6
LA, LE
52-55
t OM 5355
Shim (front spring)
2
LA, LE
53-55
LA 5414-A
Insulator (front suspension spring)-lower
2
LA, LE
52-55
8M 5415-A
Insulator (front suspension coil spring)-upper
2
LA
52-54
LA 5415-A
Insulator (front suspension coil spring)-upper
2
LA, LE
52-55

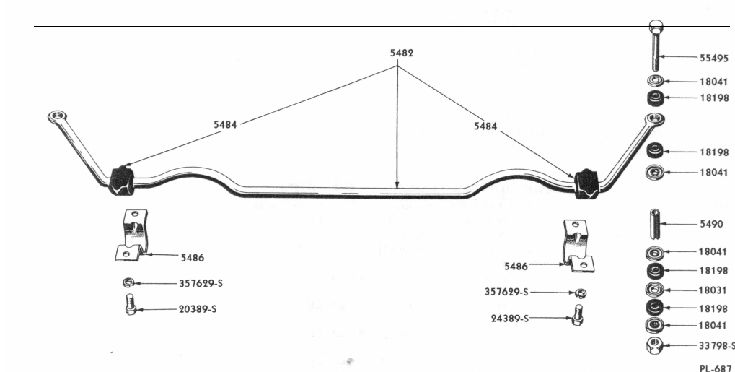

Front Stabilator

FRONT STABILATOR
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
