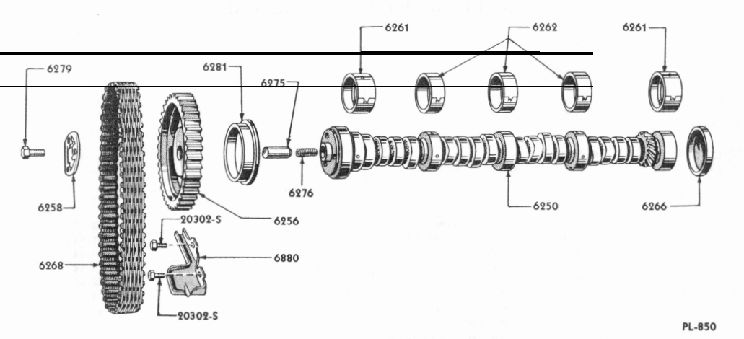

CAMSHAFT AND RELATED PARTS
PART NUMBER
PART NAME
s
MODEL
YEAR
19
EAD 6275-B
Piston (camshaft thrust) -5/8"dia.
x 1-19/64" long
1
LA, LE
52-55
EAD 6276-B
Spring (camshaft piston thrust)
1
LA, LE
52-55
EAD 6279-A
Bolt (hex head)-3/8"-16 x 7/8"-camshaft
sprocket
3
LA, LE
52-55
EAD 6281-B
Bushing assy (camshaft fuel pump drive
eccentric)-
3" 0. D. x 2-27/32" 1. D. x
51/64" thick
1
LA, LE
52-55
EAD 6303-C
Crankshaft
1
LA
52-54
B5Q 6303-A
Crankshaft-+EBB-6303-A
1
LE
55
EAD-7609-A
Retainer (clutch pilot bearing)-
2-3/64" 0. D. with 5/8" dia.
hole
1
LA, LE
52-55
