8L-77226
Bolt & washer assy (hex head)-1/4"-20
x 1/2"-
trans. side cover to case
43260-S8
Screw & washer assy (hex)-1/4"-20
x 1/2"-
trans. side cover to case
8L-77231
Valve (trans. ourth to third speed down
shift)
LA-77231-A
Valve (trans. fourth to third speed
down shift)
LA-77231-B
Valve (trans. fourth to third speed
down shift)-
part no. changed to LA-7417-A under
different
nomenclature
LA-77231-C
Valve (trans. fourth to third speed
down shift)
1
1

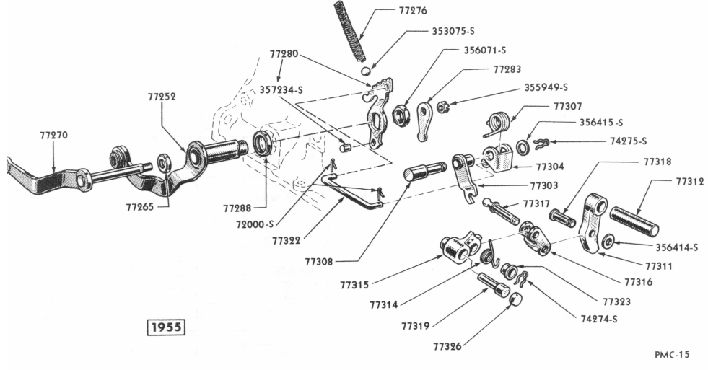

THROTTLE AND MANUAL CONTROL LEVERS
1L-77232-A
Retainer (transmission fourth to third
speed down
shift valve)-with 17/32" inside
loop diameter
1L-77234-A
Lever assy (transmission inside detent
control)
LA-77234-A
Lever assy (transmission inside detent
control)
PMB-77252-B
Lever assy (trans. manual control)
1P-77265-B
"O" Ring (trans. throttle control
shaft oil)-
Rubber-9/1611 0. D. x 23/64" I.
D. x 7/64" thick
B5S-77270-A
Lever assy (trans. throttle control)-outer-
EPMB-77270-B
LA-77271-A
Valve (trans. control valve by-pass)
1P-77276-A
Spring (trans. manual valve detent)-3/8"
O. D.
x 2-9/32" o/all free length
1P-77280-A
Lever assy (trans. manual valve detent)
353075-S
Ball (steel)-3/8" dia. -for manual
valve
detent lever
356071-S
Locknut (hex)-9/16"-24-attach manual
valve
detent lever to manual control shaft
357234-S
Pin (straight)-1/4" x 5/16"-use
with detent
lever
