S

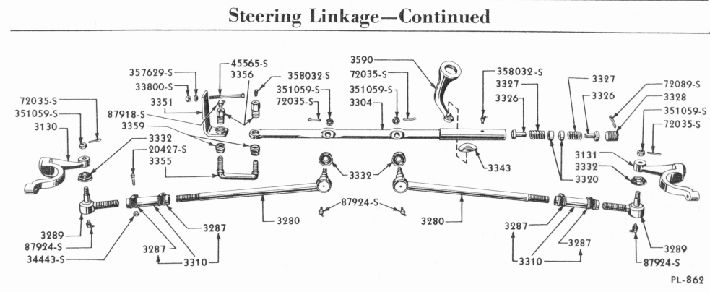

STEERING LINKAGE
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
PART NUMBER
C
L
S
PART NAME
RE
Q''
MODEL
YEAR
19
48 3287
Clamp (spindle connecting rod)
4
LA, LE
52-55
LA 3289-A
NS End assy (spindle connecting rod)-serviced in
HCK-3270-A Kit
2
LA. LE
52-55
72035-S7-8
Cotter pin-1/8" x 1"
2
LA, LE
52-55
87924-S8
Fitting (lubricator)-1/4"-28 x
1/2"-elbow type
2
LA. LE
52-55
351059-S
Nut (hex slotted)-1/2"-20
2
LA, LE
52-55
LA 3304-C
Link assy (steering connecting)
1
LA, LE
52-55
87918-58
Fitting (lubricator)- 1/8"-27
x 85°
1
LA, LE
52-55
11A 3310
Sleeve assy (drag link adjusting)
2
LA, LE
52-55
20427-S8
Bolt (hex head)-5/16'•-24 x
1-1/4"
4
LA, LE
52-55
34443-S7-8
Lockout (hex)-5/16"-24
4
LA, LE
52-55
HACK 3312-A
Kit (drag link ball stud repair)-consists of the
following
(2) LA-3320-A Seat
(2) LA-3326-A Seat
(2) LA-3327-A Spring
(1) LA-3328-B Plug
(1) 72089-S
C/Pin
(1) 87918-S8
Fitting
1
LA. LE
52-55
LA 3320-A
NS Seat (steering connecting link extension ball stud)-
serviced in HCK-3312-A Kit
2
LA. LE
52-55
LA 3326-A
Seat (steering connecting link extension ball stud
spring)-1-5/32" long-also serviced in
HCK-3312-A Kit
2
LA. LE
52-55
LA 3327-A
NS Spring (steering connecting link extension ball stud)
-31/32" O. D. x 1-45/64" approx. free length
serviced in HCK-3312-A Kit
2
LA, LE
52-55
LA 3328-B
Plug (steering connecting link extension)-1-1/16"-
18 x 15/16"-also serviced in HCK-3312-A Kit
1
LA. LE
52-55
72089-S Cotter pin-1/8" x 1-3/4"
1
LA, LE
52-55
87918-S8
Fitting (lubrication)
1
LA, LE
54-55
