Ford Bronco

This is the Ford manual covering the Dana 20 transfer case for the Ford Bronco. We thank Graham Fennie for this contribution to the Old Car Manual Project.

The links below are to jpg images of the pages for the Broco transfer case manual. If you have trouble using these files, please email us

Index

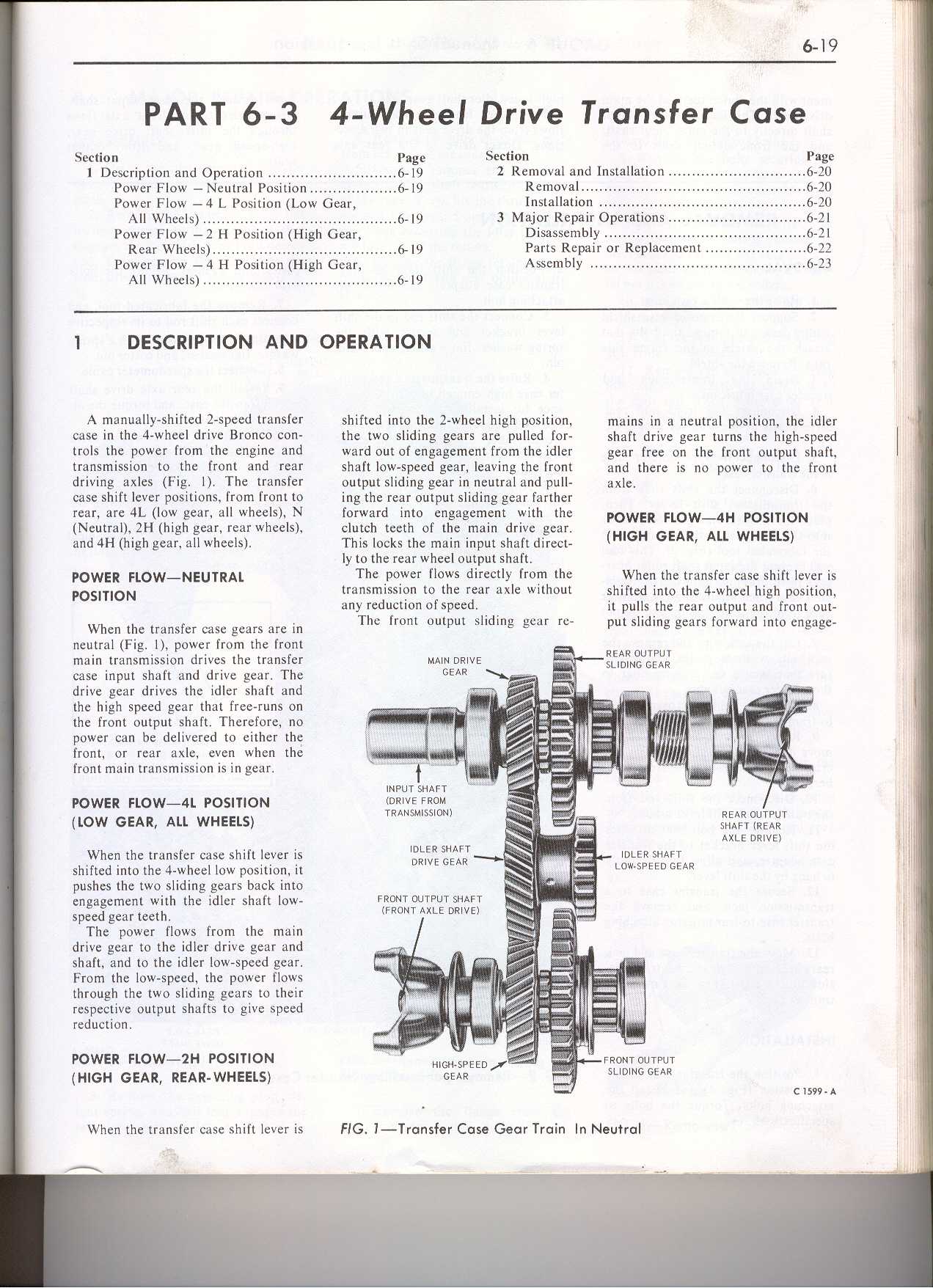

description and operation

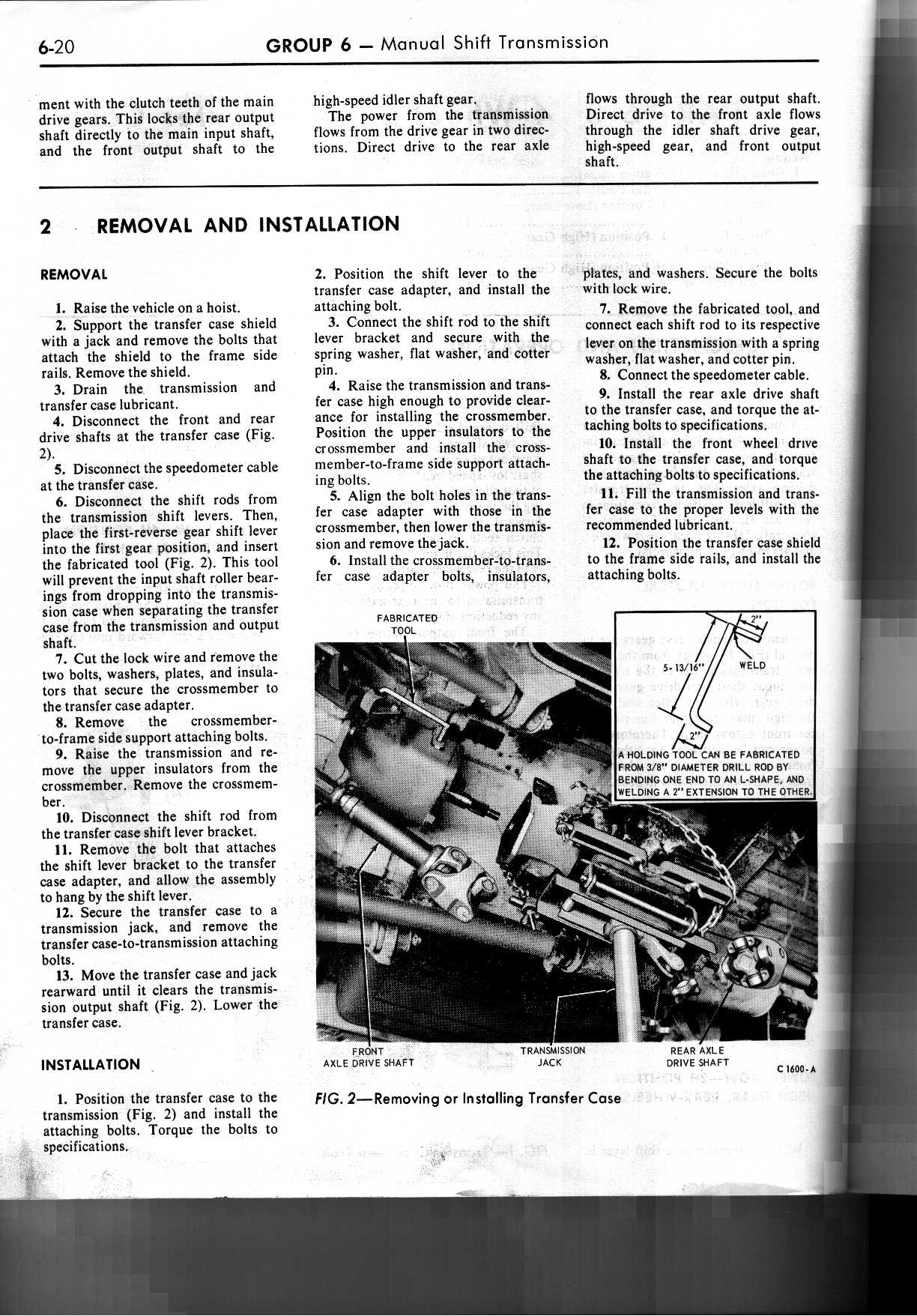

removal and installation (p2)

major repair operations (p3)

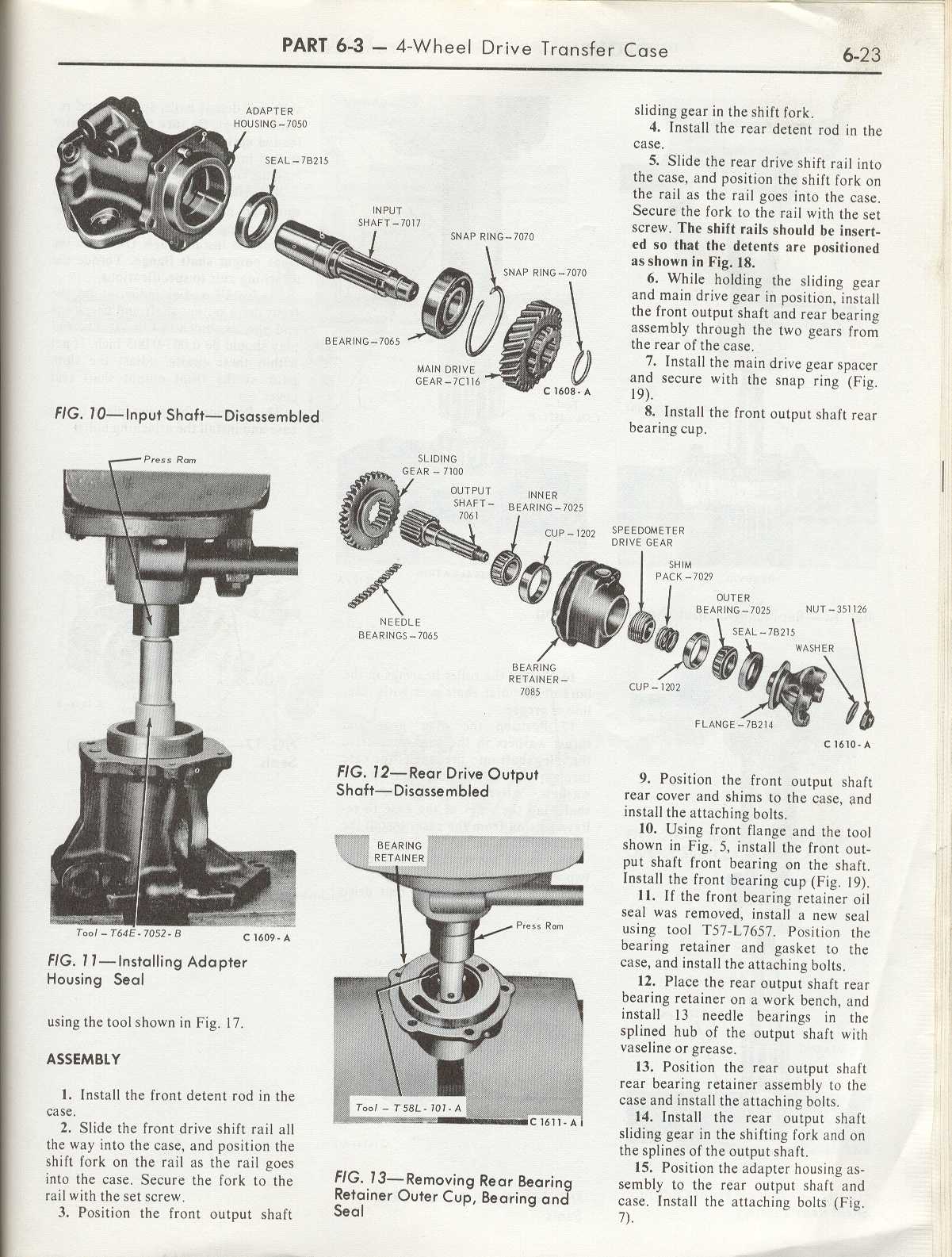

continued (p4)

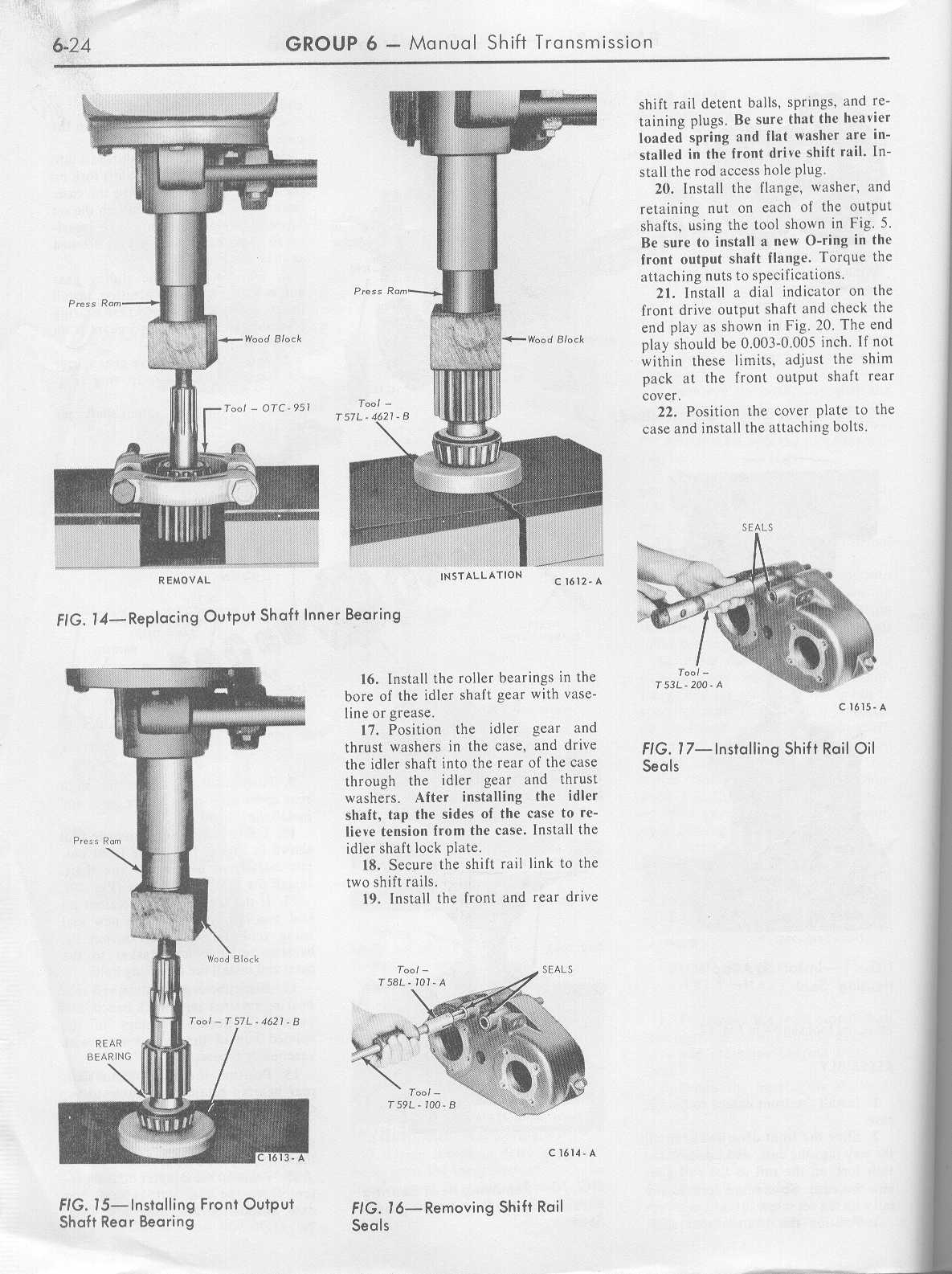

continued (p5)

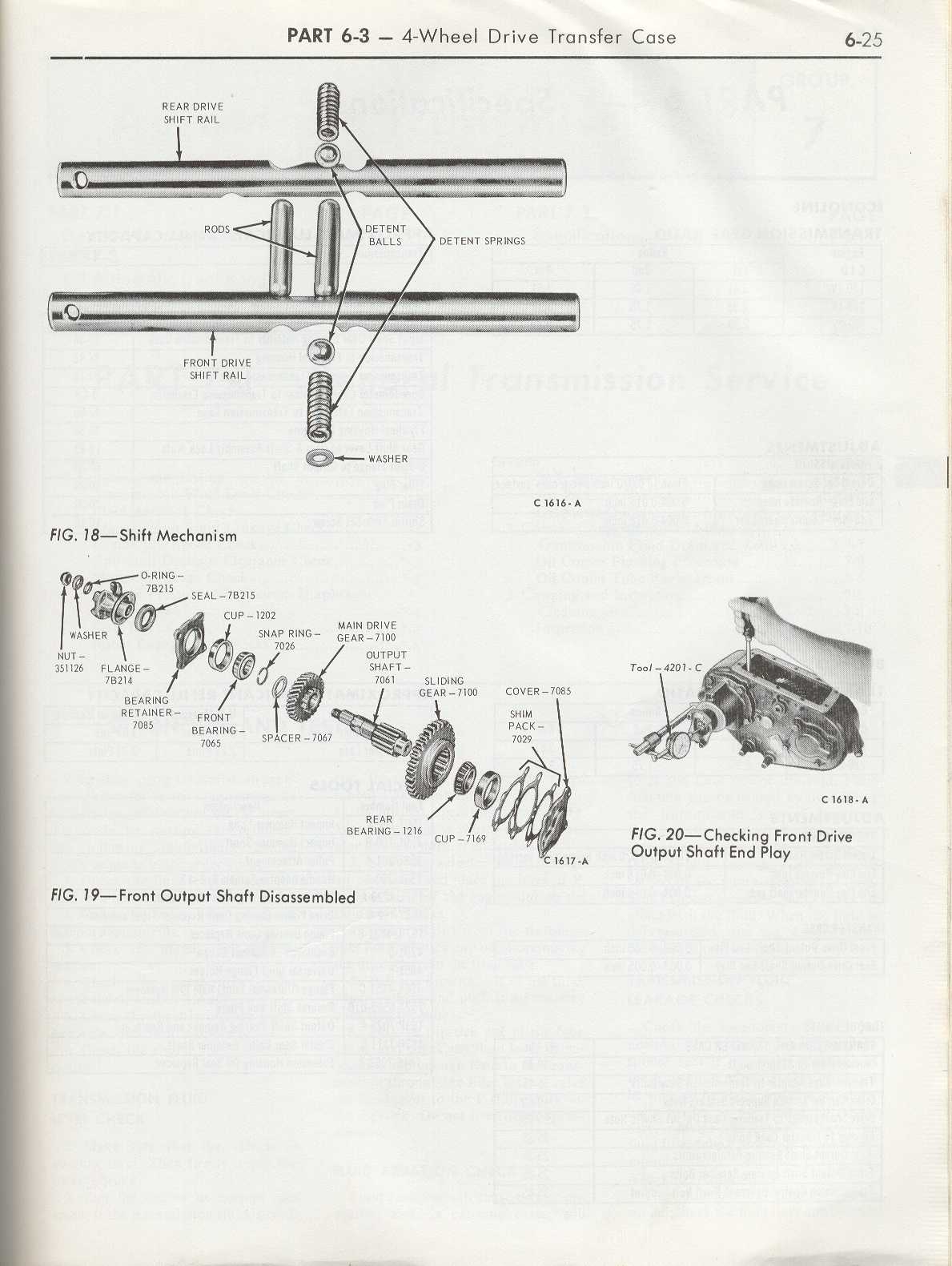

continued (p6)

continued (p7)

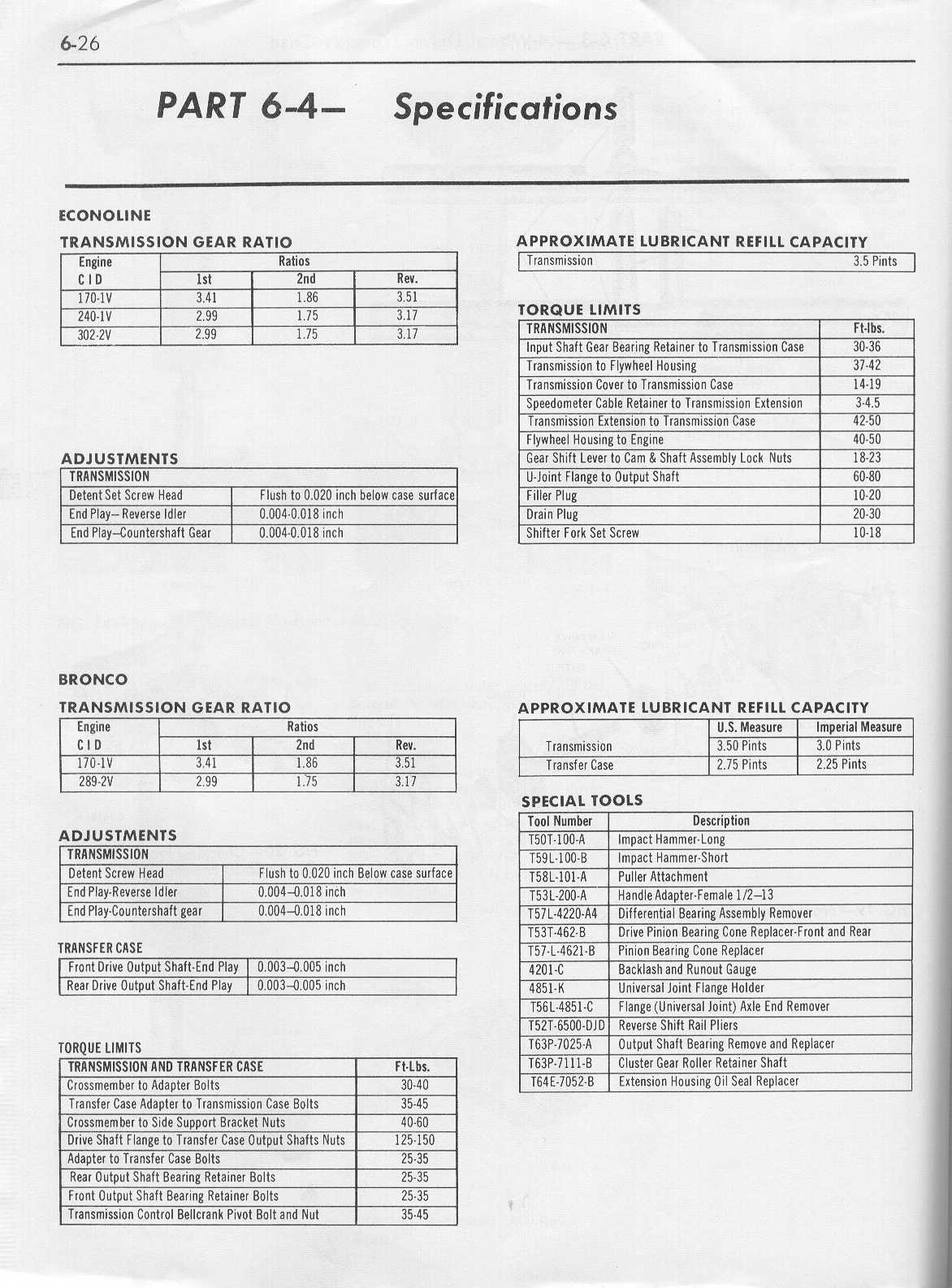

specifications
