OVERHAUL
1. INTRODUCTION
Tool Name
Holley No. Snap-On No.
To properly overhaul the carburetor, it must be completely disassembled, and each part must be cleaned and inspected for wear, deterioration, and damage. All defective parts should be discardedand replaced with genuine Holley replacement parts. The following overhaul procedure is easily accomplished, using afewfactory approved special carburetor tools. The use of these tools are strongly recommended to prevent damage to parts. However, if special tools are not available the carburetor can be overhauled using good ordinary hand tools with a reasonable amount of care.
Economizer Remover Fuel Inlet Seat Plug Socket
Fuel Inlet Valve Seat Socket
Power Valve Socket Main Jet Socket Float Gage
Economizer Replacer Air Horn Aligning Pins
8211-44 MC-138
8211-28 FMC-38
8211-31 MC-125 8211-33 MC-127 8211-49 TMC-36A Consult Holley Catalog for proper size. 8211-32 MC-126
8211-35 MC-129
2. SPECIAL TOOLS
The special tools recommended for use in overhauling this carburetor are listed below:
3. MASTER REPAIR KITS
The proper Master Repair Kit for this carburetor, as specified in the current Holley Carburetor Parts Catalog, should be used to assure a

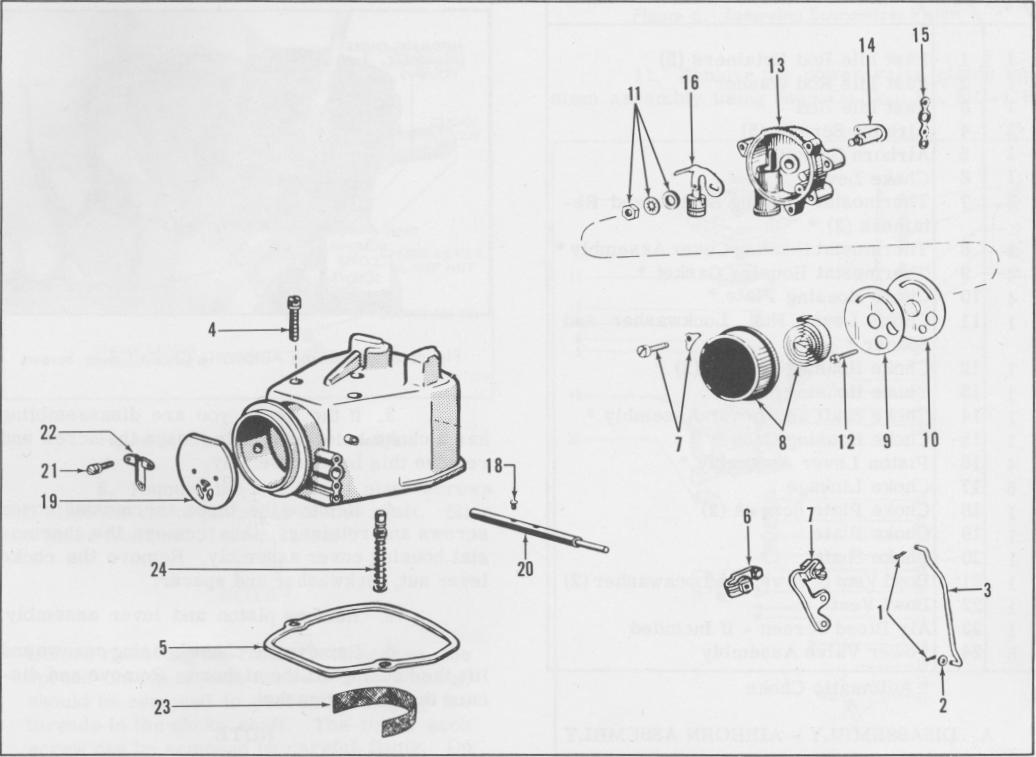

Figure 1 . Disassembly - Air Horn Assembly
