1

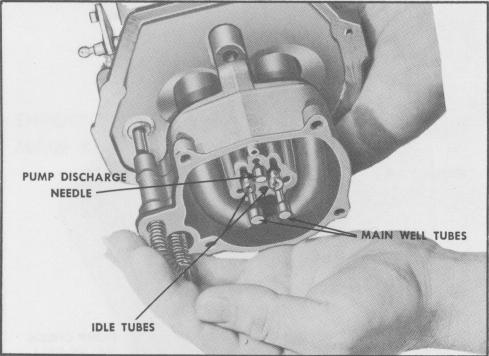

Figure 10. Removing Main Well Tubes Idle Tubes and Pump Discharge Valve

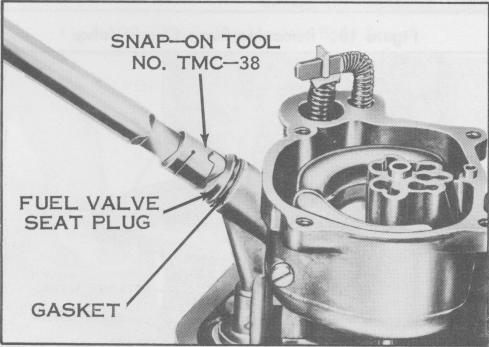

Figure 11. Removing Fuel Valve Seat Plug

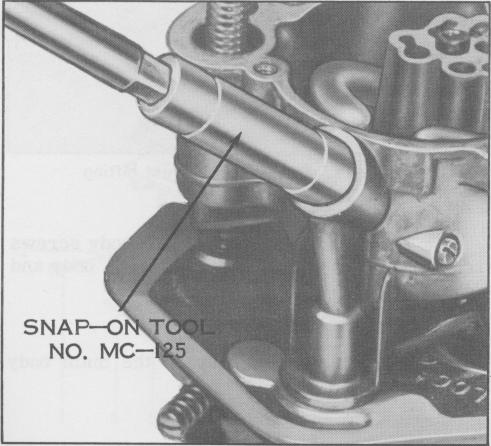

Figure 12. Removing Fuel Inlet Needle Seat
CARBURETOR MODELS 885-FF & 885-FFG

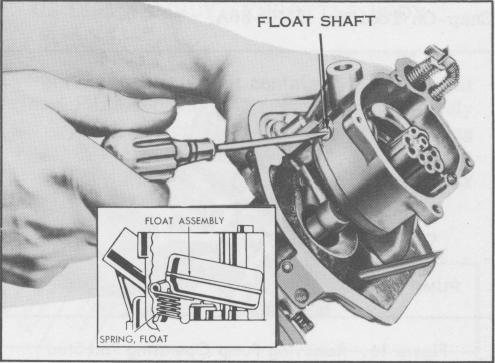

Figure 13. Removing Float Shaft
5. Remove the float shaft, the float assembly, the fuel inlet needles, and float spring.

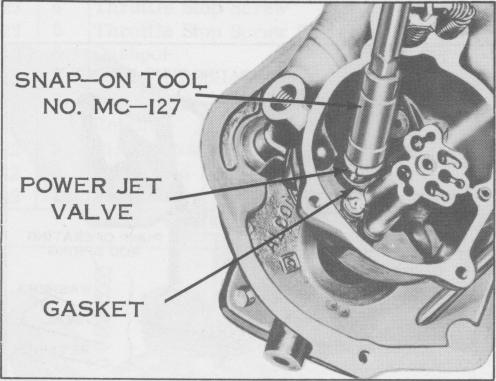

Figure 14. Removing Power Jet Valve
6. Using Snap-On Tool No. MC-127, remove the power jet valve and gasket. Discard the gasket.

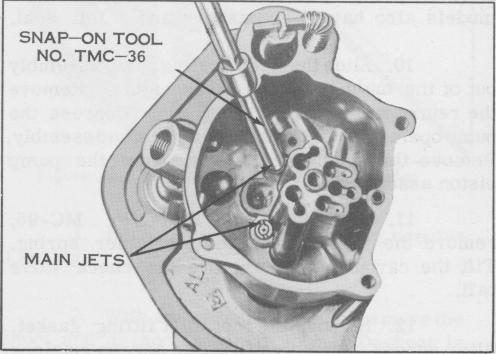

Figure 15. Removing Main
Jets
