                  Key To Figure 9.


  Order of

Removal
NAME

Order of
Removal

    NAME



  9
  Secondary Fuel Bowl

          Fuel Bowl Screws and
Gaskets (4) (Primary)
Primary Fuel Bowl
Primary Fuel Bowl Gasket
Primary Metering Body
Primary Metering Body Gasket
Fuel Line Tubing

                10
  Secondary Fuel Bowl Gasket

    2
3
4
5
6
7
8
          11
  Secondary Metering Body

              12
  Secondary Metering Body Gasket

              13
Bowl Vent(Secondary)

              14
  Secondary Diaphragm Rod Retainer

              15
  Throttle Body to Main Body Screws

        Fuel Line Tubing "O" Rings (2)
Fuel Bowl Screws and Gaskets
(4)(Secondary)

  & Lockwashers (8)

              16
  Throttle Body to Main Body Gasket



                              Key To Figure 10.

  Order of

  Removal
NAME

  1
  Primary Float and Hinge Retainer

  2
  Primary Float and Hinge Assembly

  3
  Float Spring

  4
  Baffle Plate Retainer

  5
  Baffle Plate

  6
  Fuel Valve and Seat Assembly

  7
  Fuel Valve and Seat Gasket

  8
  Pump Diaphragm Cover Screw

  & Lockwasher

  9
  Pump Diaphragm Cover
  10
  Pump Diaphragm Assembly
  11
  Pump Diaphragm Return Spring
  12
  Check Ball "G" Retainer if
  13
  Check Ball Included
  14
  Fuel Inlet Fitting
  15
  Fuel Inlet Fitting Gasket
  16
  Filter Screen Assembly
  17
  Air Vent Retainer
  18
  Air Vent Rod Spring Retainer
  19
  Air Vent Rod Spring
  20
  Air Vent Push Rod
  21
  Air Vent Valve
  22
  Fuel Level Sight Plug
  23
  Fuel Level Sight Plug Gasket
  24
  Primary Metering Body Main Jets (2)
  25
Power Valve Assembly
  26
  Power Valve Gasket
  27
  Idle Adjusting Needles (2)
  28
  Idle Adjusting Needle Seals (2)
  29
  Spark Fitting - If Included
  30
  Secondary Float and Hinge Retainer
  31
  Secondary Float and Hinge Assembly
  32
  Float Spring
  33
  Baffle Plate Retainer
  34
  Baffle Plate
  35
  Fuel Valve and Seat Assembly
  36
  Fuel Valve and Seat Gasket
  37
  Secondary Metering Body Main Jets (2)
  38
  Secondary Power Valve Assembly
  39
  Secondary Power Valve Gasket
  40
  Fuel Level Sight Plug
  41
  Fuel Level Sight Plug Gasket

                        Primary fuel bowl disassembly on all late
production models is the same. Refer to Para
graph 8 (Figure 2).

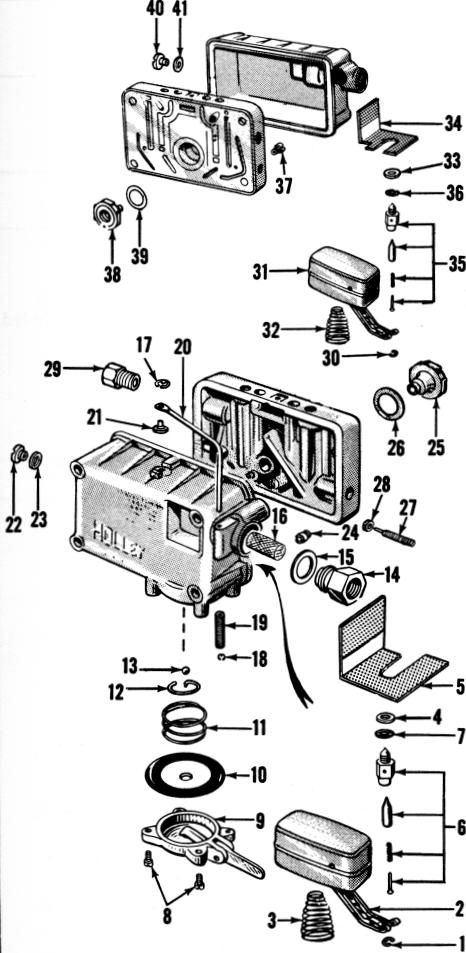

  Figure 10. Disassembly-Fuel Bowl and Metering Bodies
4150C (Early Production)
