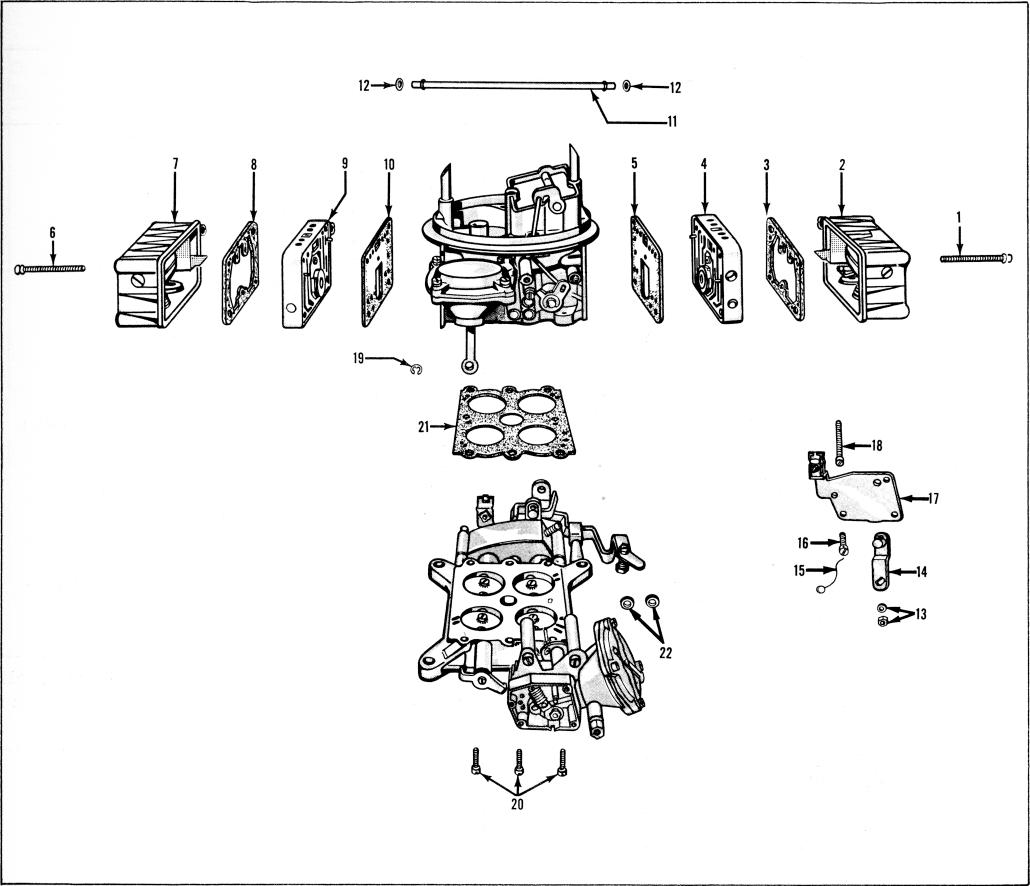

    Figure 13. Disassembly-Major Subassemblies 4150G

  Order of

Removal
  NAME

Order of

Removal
  NAME
1
  Fuel Bowl Screws (4) & Gaskets
  12
  Fuel Line Tubing "O" Rings (2)
  13
  Choke Control Lever Nut & Lockwasher

  (4) (Primary)
  14
  Choke Control Lever
2
  Primary Fuel Bowl
  15
  Governor Housing Safety Wire & Seal
3
  Primary Fuel Bowl Gasket
  16
  Governor Housing Cover Screws (4)
4
  Primary Metering Body

  & Lockwashers (4)
5
  Primary Metering Body Gasket
  17
  Governor Housing Cover
6
  Fuel Bowl Screws (4) & Gaskets
  18
  Governor to Main Body Screws &

  (Secondary)

  Lockwashers (3)
7
  Secondary Fuel Bowl
  19 Secondary Diaphragm Rod "E "Retainer
8
  Secondary Fuel Bowl Gasket

  20
  Throttle Body to Main Body Screws &
9
  Secondary Metering Body

  Lockwashers (8)
  10
  Secondary Metering Body Gasket

  21
  Throttle Body to Main Body Gasket
  11
  Fuel Line Tubing

22-
  Governor Housing Gaskets (2)
