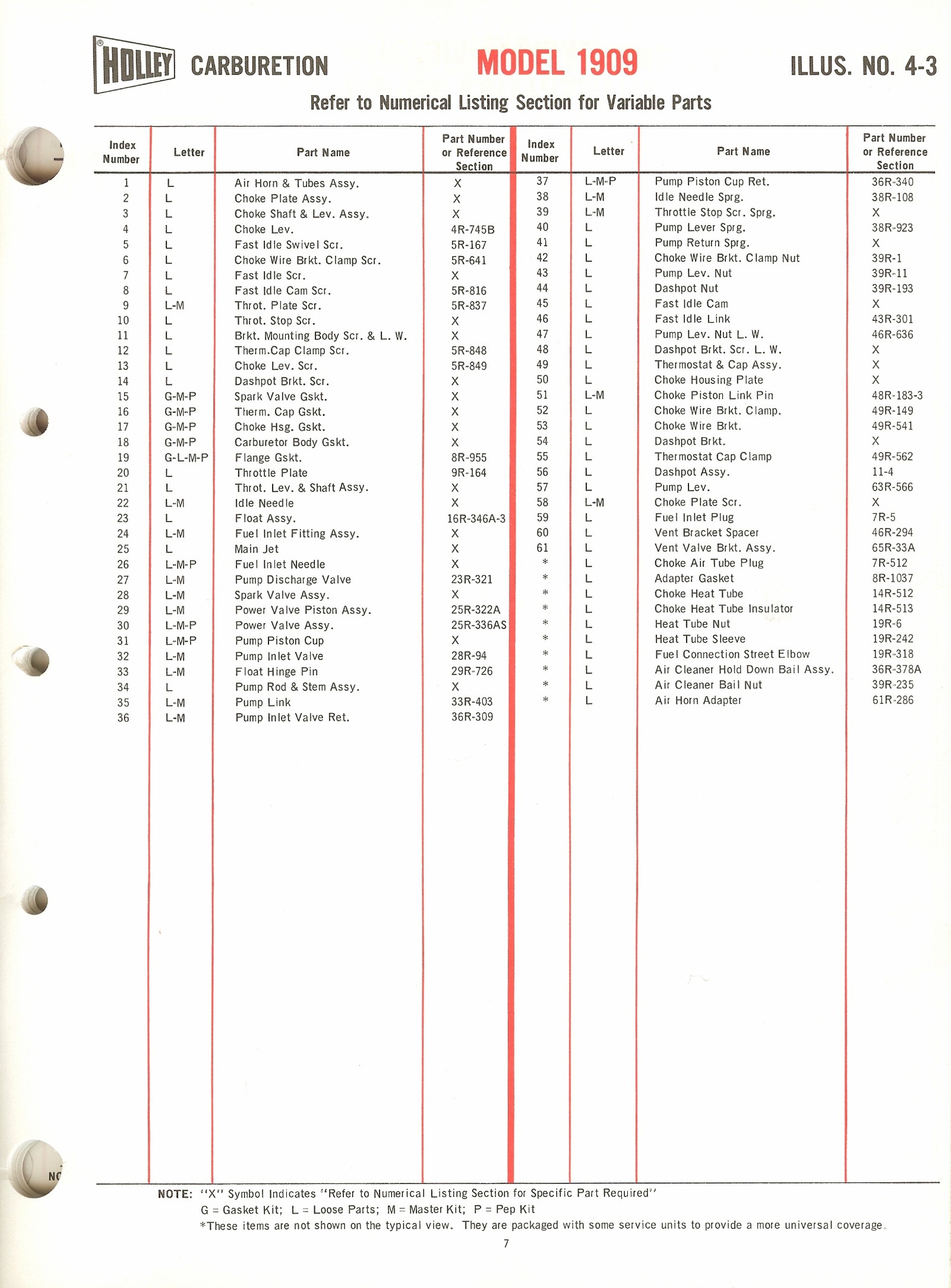

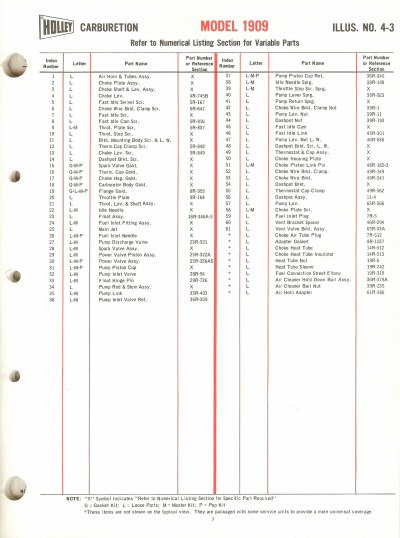

Holley 1909 Service Parts Lists and Typical Views

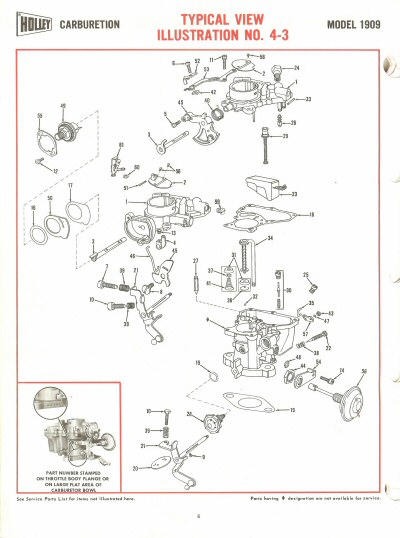

This is from the Holley Carburetion Catalog for 1968.  It features exploded diagrams and parts identification tables for each type of Holley carb up to that date.

Click on an image below for a 200 dpi enlargement. Depending on which browser you are using, clicking on the image will display it in full resolution.
