Wiring diagrams for 57-65 Ford

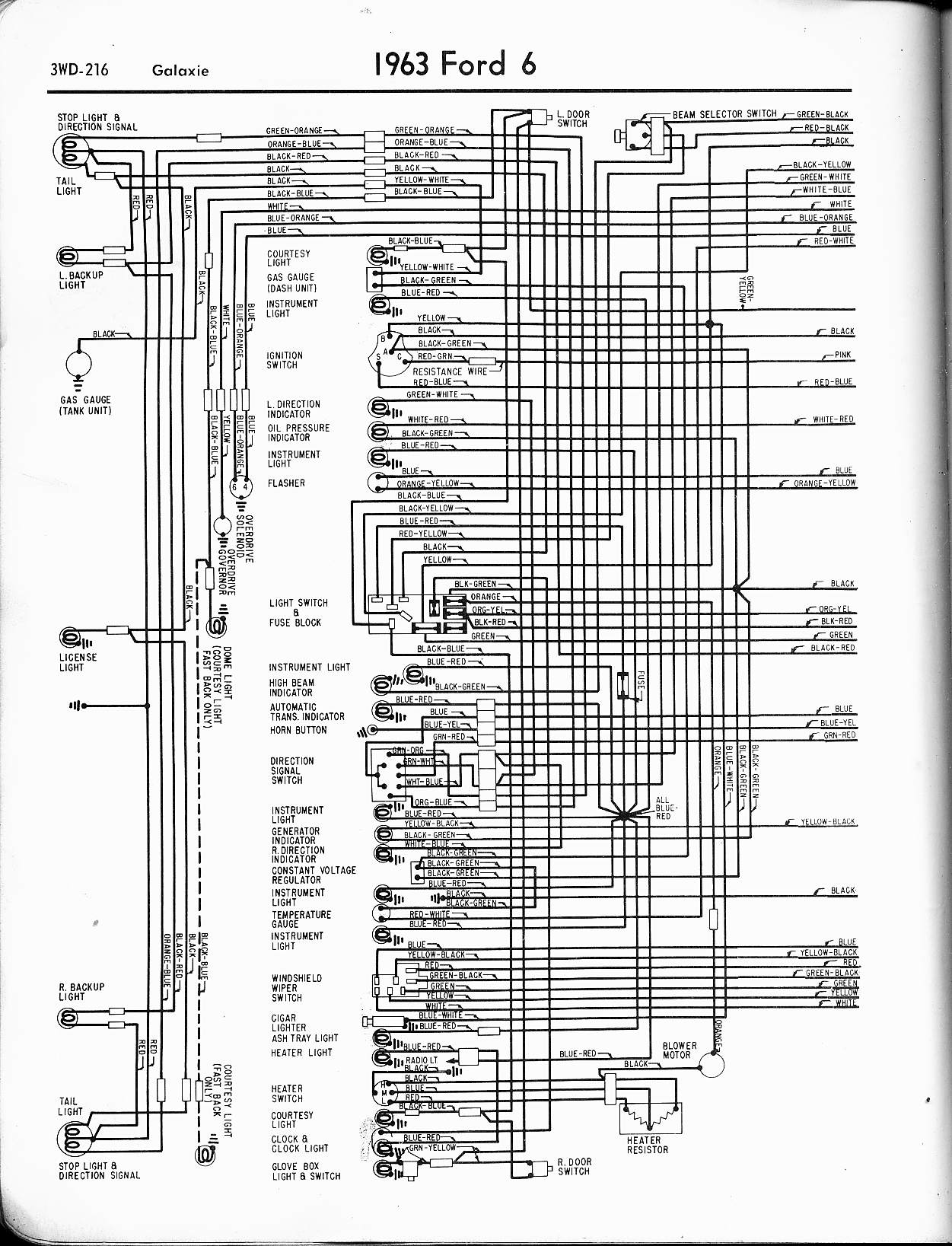

These diagrams are from the 1965 edition of the 'National Automotive Service' wiring diagrams book. This book contains the wiring diagrams for all American cars from 57-65.

The diagrams below have been scanned so as to ensure maximum detail (big files!).

Back to the Old Car Manual Project

contact us

Index of wiring diagrams for 1957-1965 Ford

1957 6 Cyl .All Models
1957 V8 Fairlane, 500, 300, Custom 300
1957 Thunderbird

1958 6 Cyl. All Models
1958 V8 Fairlane, 500, 300, Custom 300
1958 Thunderbird

1959 6 Cyl. All Models
1959 V8 Fairlane, 500, 300, Custom 300
1959 Thunderbird

1960 6 Cyl. Falcon
1960 6 Cyl. Fairlane, 500, Galaxie
1960 V8 Fairlane, 500, Galaxie
1960 Thunderbird

1961 6 Cyl. Falcon
1961 6 Cyl. Fairlane, Galaxie
1961 V8 Fairlane, Galaxie
1961 Thunderbird

1962 6 Cyl. Falcon
1962 6 & V8 Fairlane
1962 6 Cyl. Galaxie
1962 V8 Galaxie
1962 Thunderbird

1963 6 Cyl. Falcon left
1963 6 Cyl. Falcon right

1963 V8 Falcon left
1963 V8 Falcon right

1963 6 Cyl. Fairlane left
1963 6 Cyl. Fairlane right

1963 V8 Fairlane left
1963 V8 Fairlane right

1963 6 Cyl. Galaxie left
1963 6 Cyl. Galaxie right

1963 V8 Galaxie left
1963 V8 Galaxie right

1963 Thunderbird left
1963 Thunderbird right

1964 6 & V8 Falcon left
1964 6 & V8 Falcon right

1964 6 & V8 Fairlane left
1964 6 & V8 Fairlane right

1964 6 & V8 Galaxie left

1964 6 & V8 Galaxie right

1964 6 & V8 Mustang left
1964 6 & V8 Mustang right

1964 Thunderbird left
1964 Thunderbird right

1965 6 & V8 Falcon left
1965 6 & V8 Falcon right

1965 6 & V8 Fairlane left

1965 6 & V8 Fairlane right

1965 6 & V8 Galaxie left
1965 6 & V8 Galaxie right

1965 6 & V8 Mustang left
1965 6 & V8 Mustang right

1965 Thunderbird left
1965 Thunderbird right

1963 Ford Patrol Car
1960 Ford police car

more South Carolina patrol cars
more period pictures
