Instruction Manual for the 16/50 HP Rover Car

contributed by:

Kenneth Gundry (email)

You can contact Mr. Gundry at the email link above. He hails from San Francisco and would be pleased to make contact with owners of cars from the 1920s.

The files listed below are arranged so that when printed, you can print out your own copy of the manual. Contact us if you have problems viewing the files. (Note: Internet Explorer 5.5 or higher is best, since it allows resizing of images to fit your screen.)

How the pages are numbered:

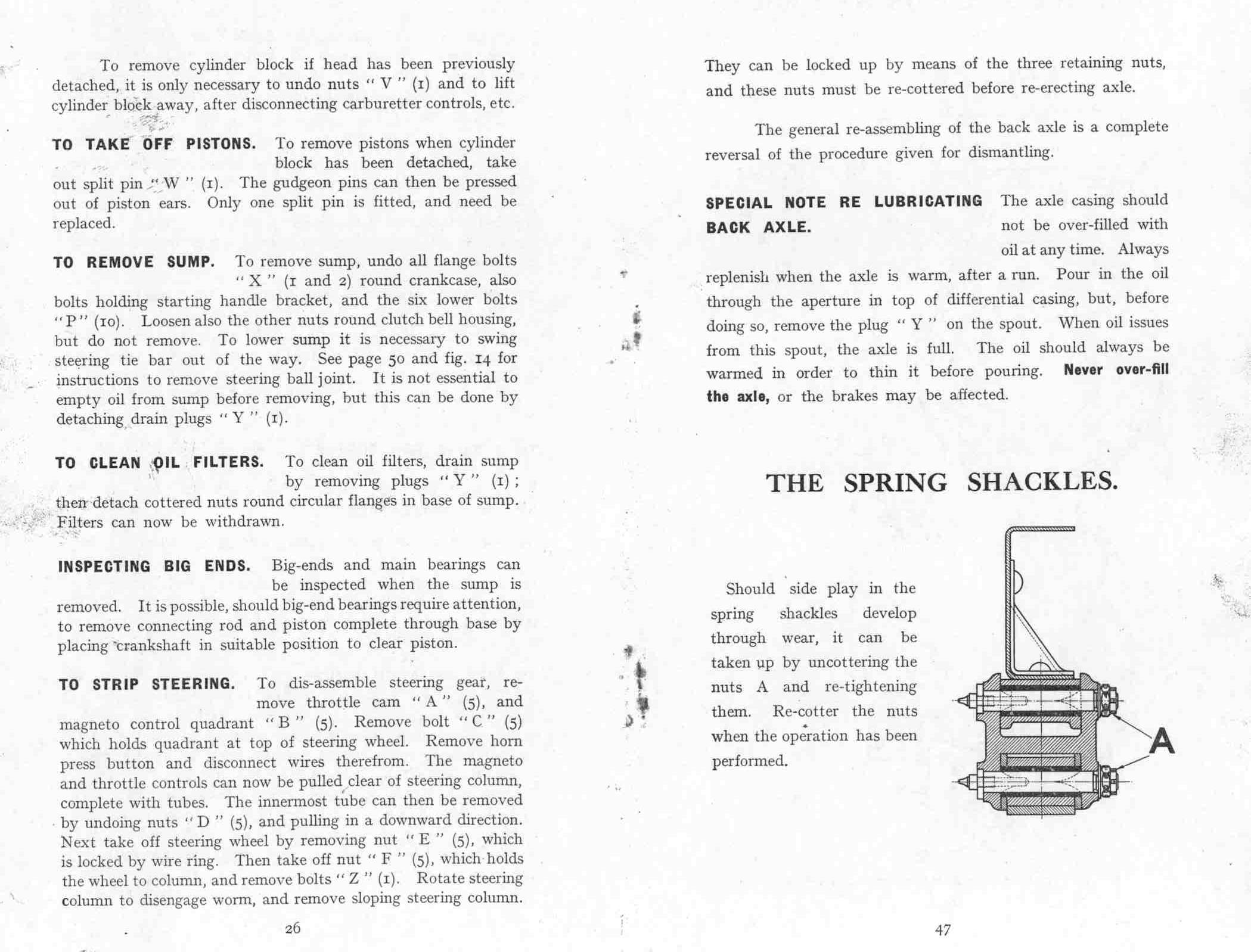

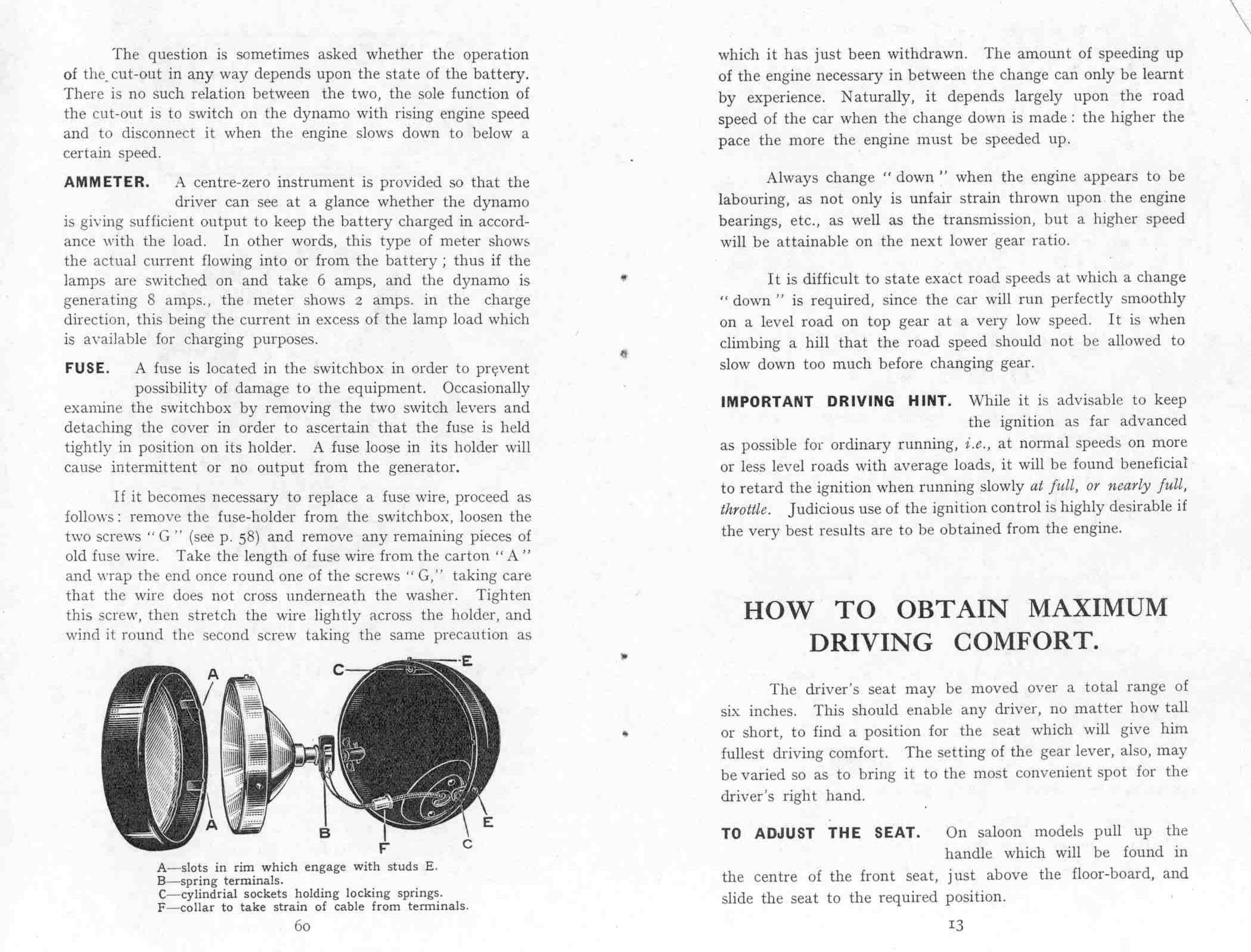

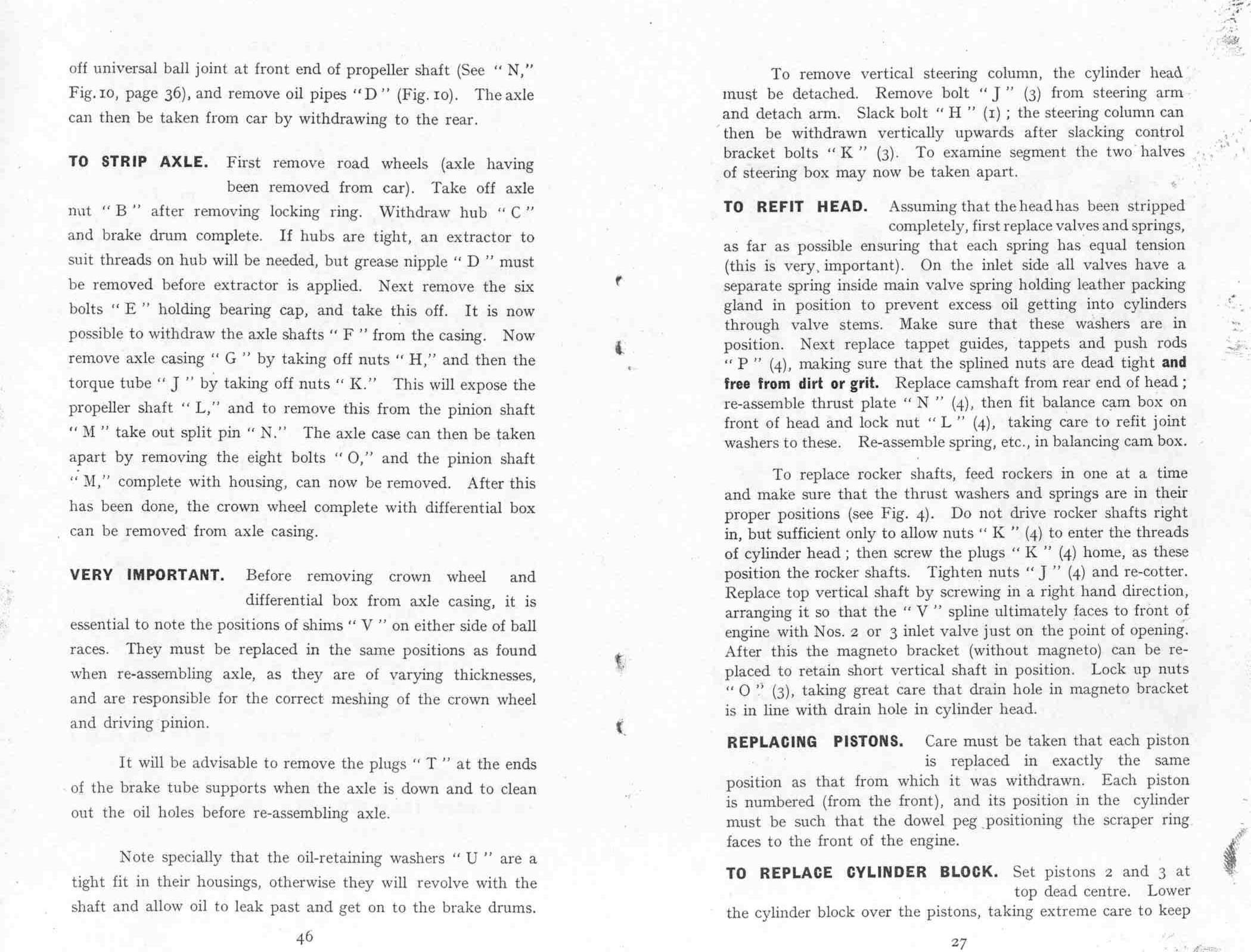

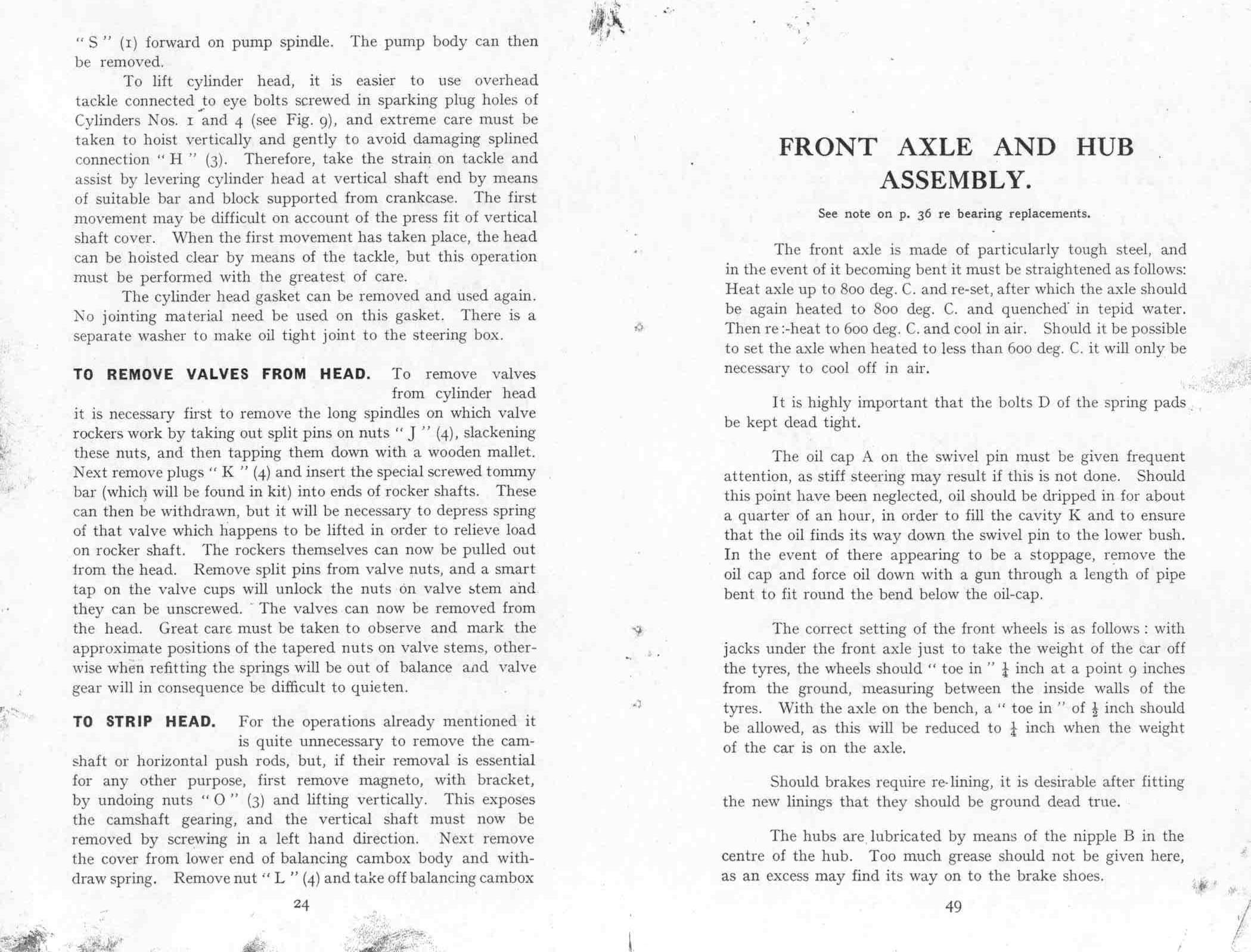

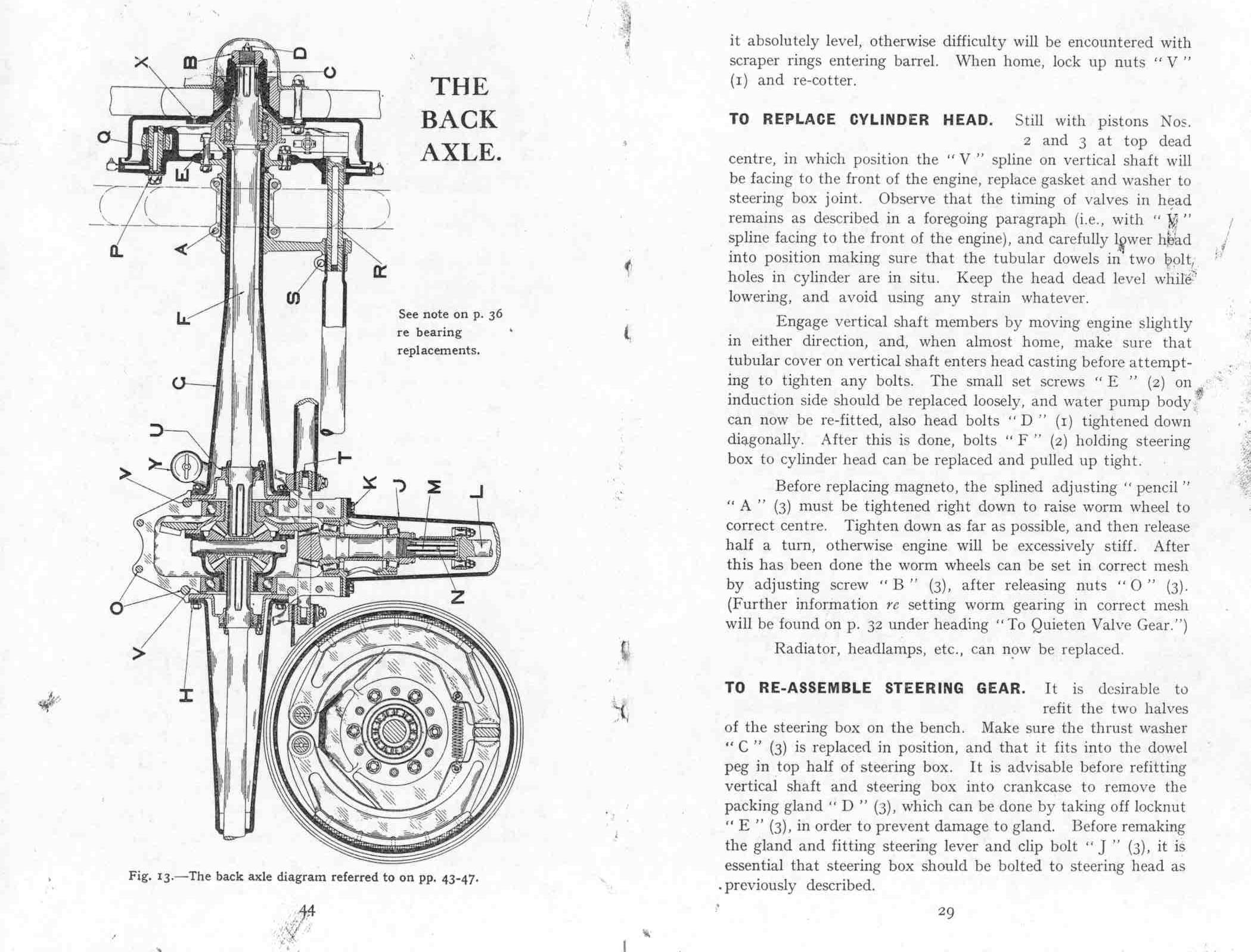

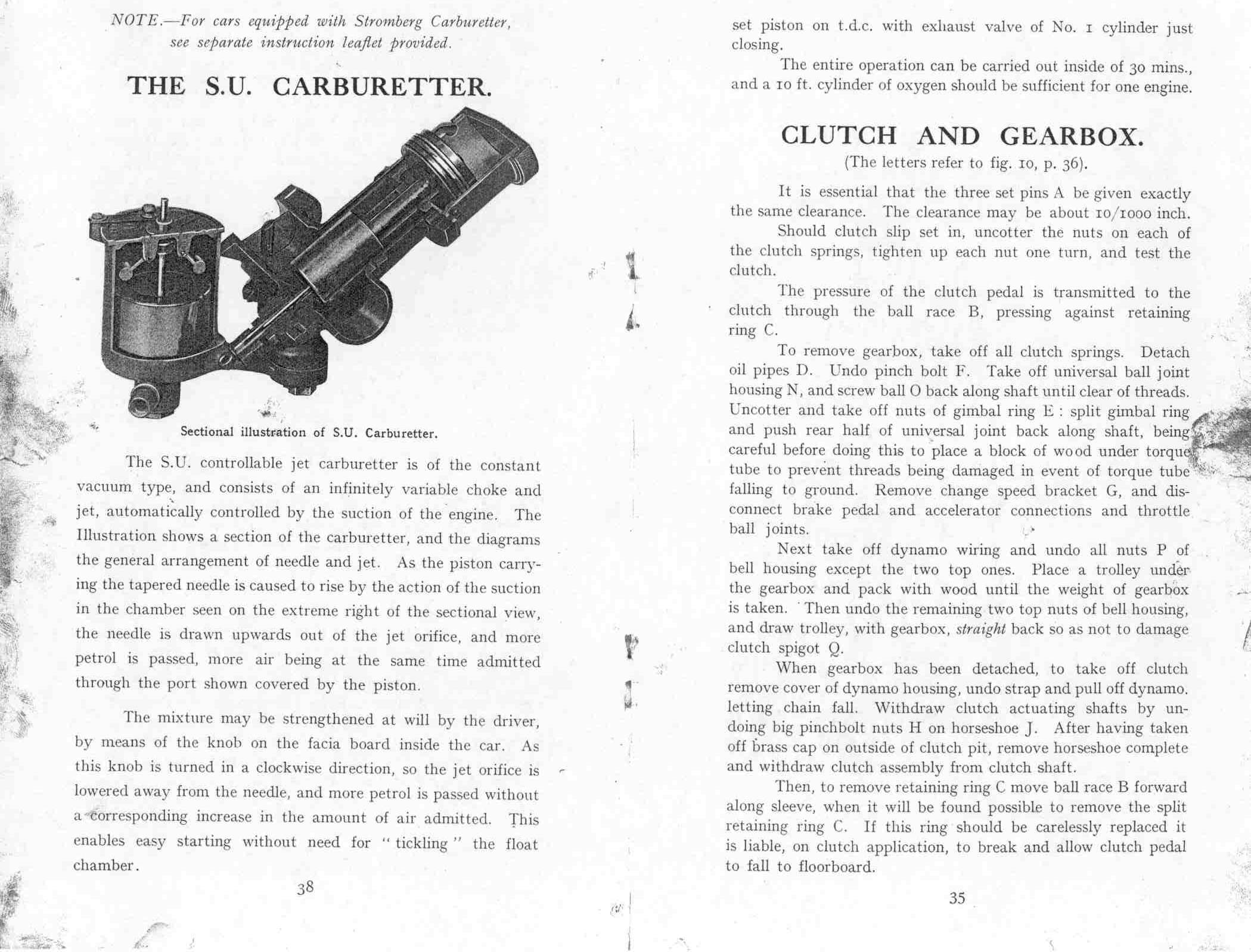

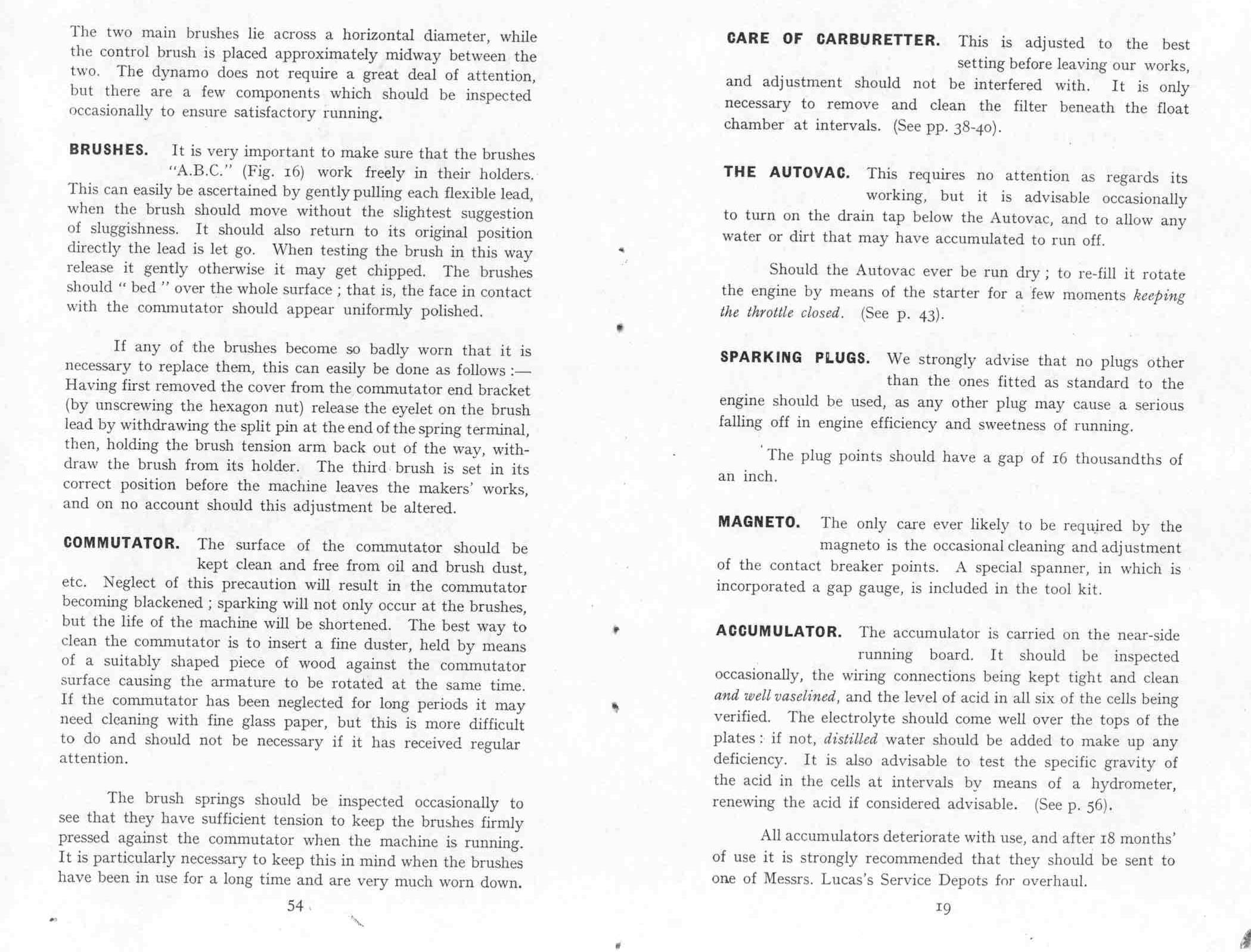

Each jpg file below contains two pages, the one with the same number as the file and the later one in the booklet
that occupies the same side of the sheet. Thus printing these out double
sided with consecutive files on the two sides gives sheets that when folded
and stapled down the middle produces a copy of the original (except for the
engine, carburetor and electrics figures which were glued in anyway).

Back to the Old Car Manual Project

contact us

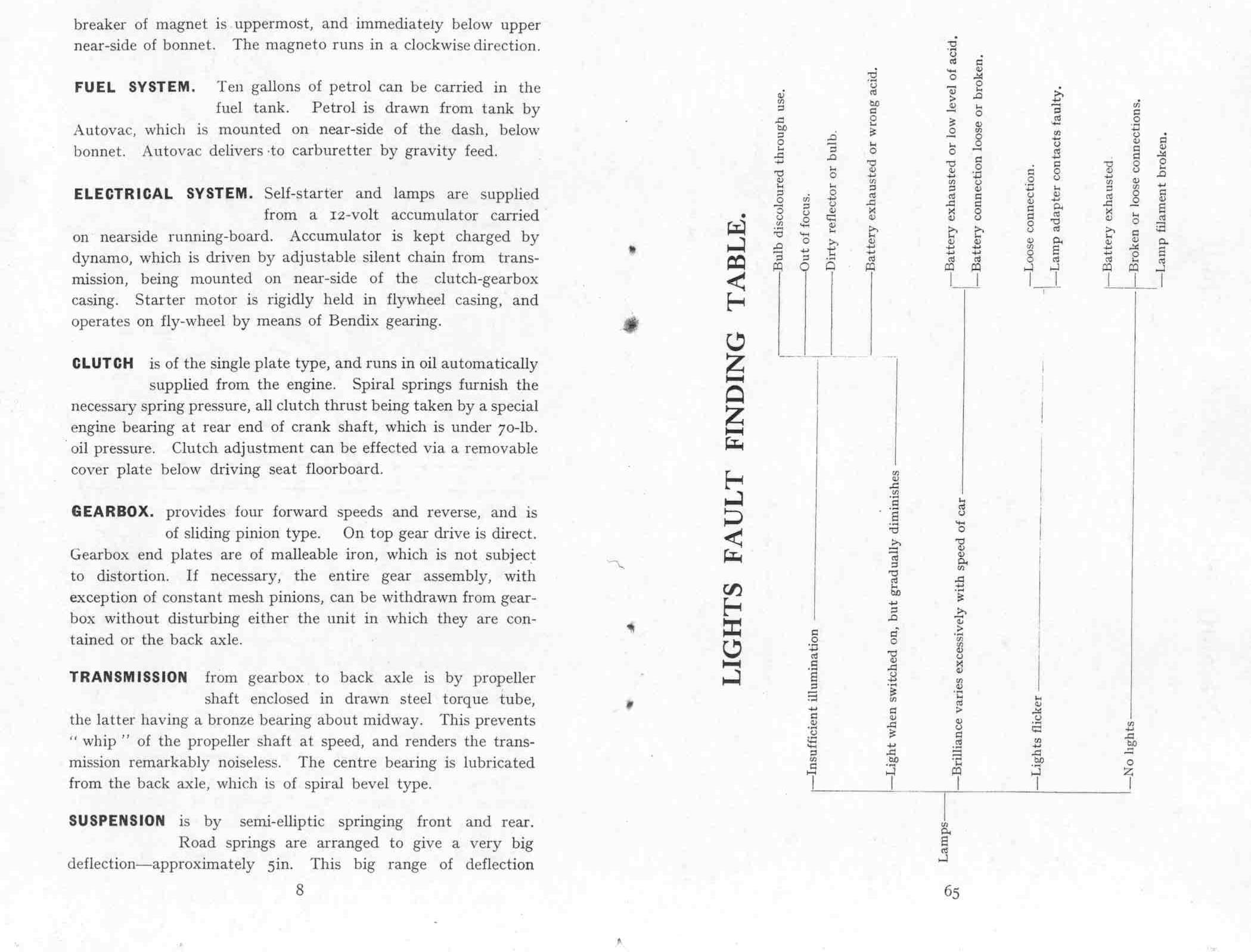

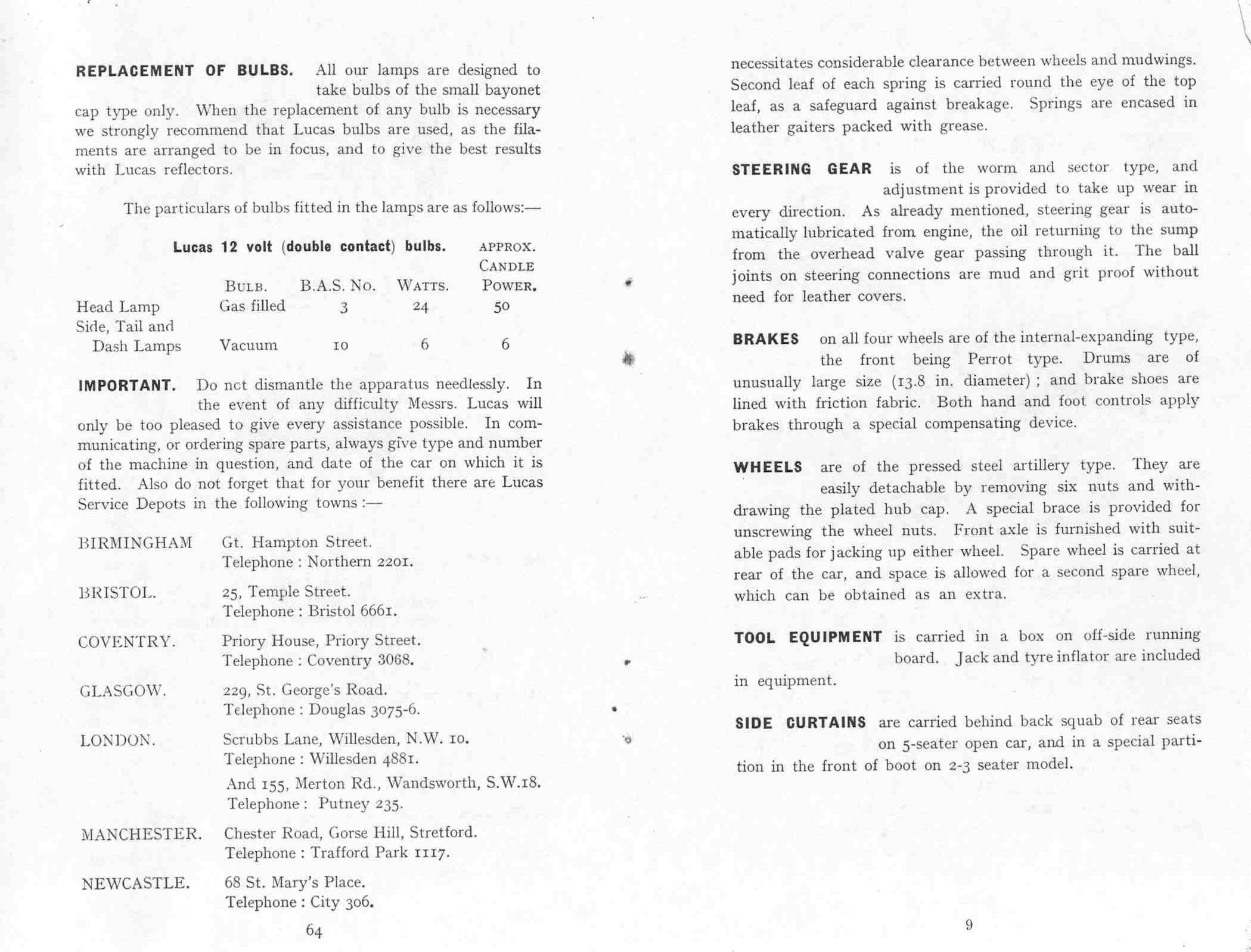

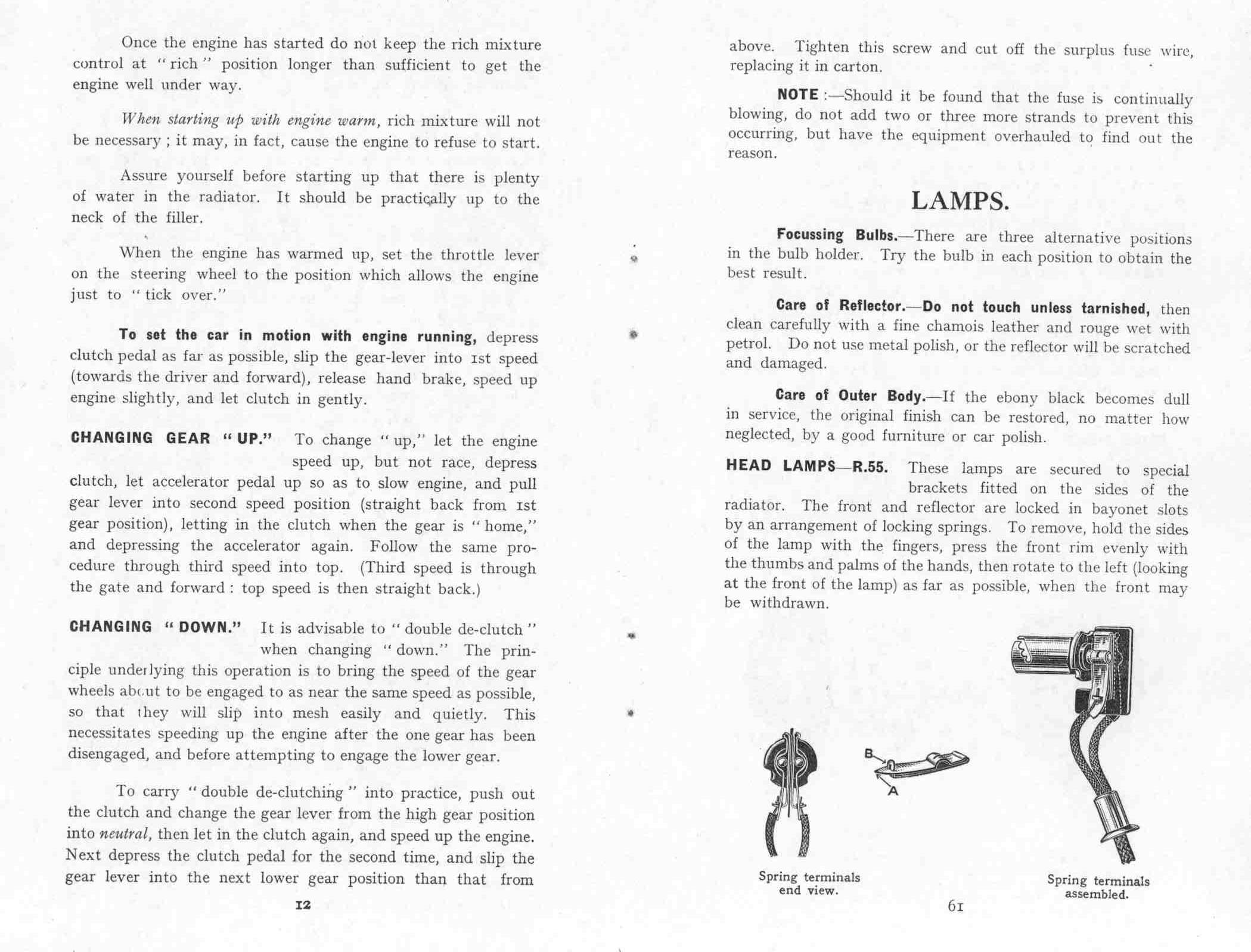

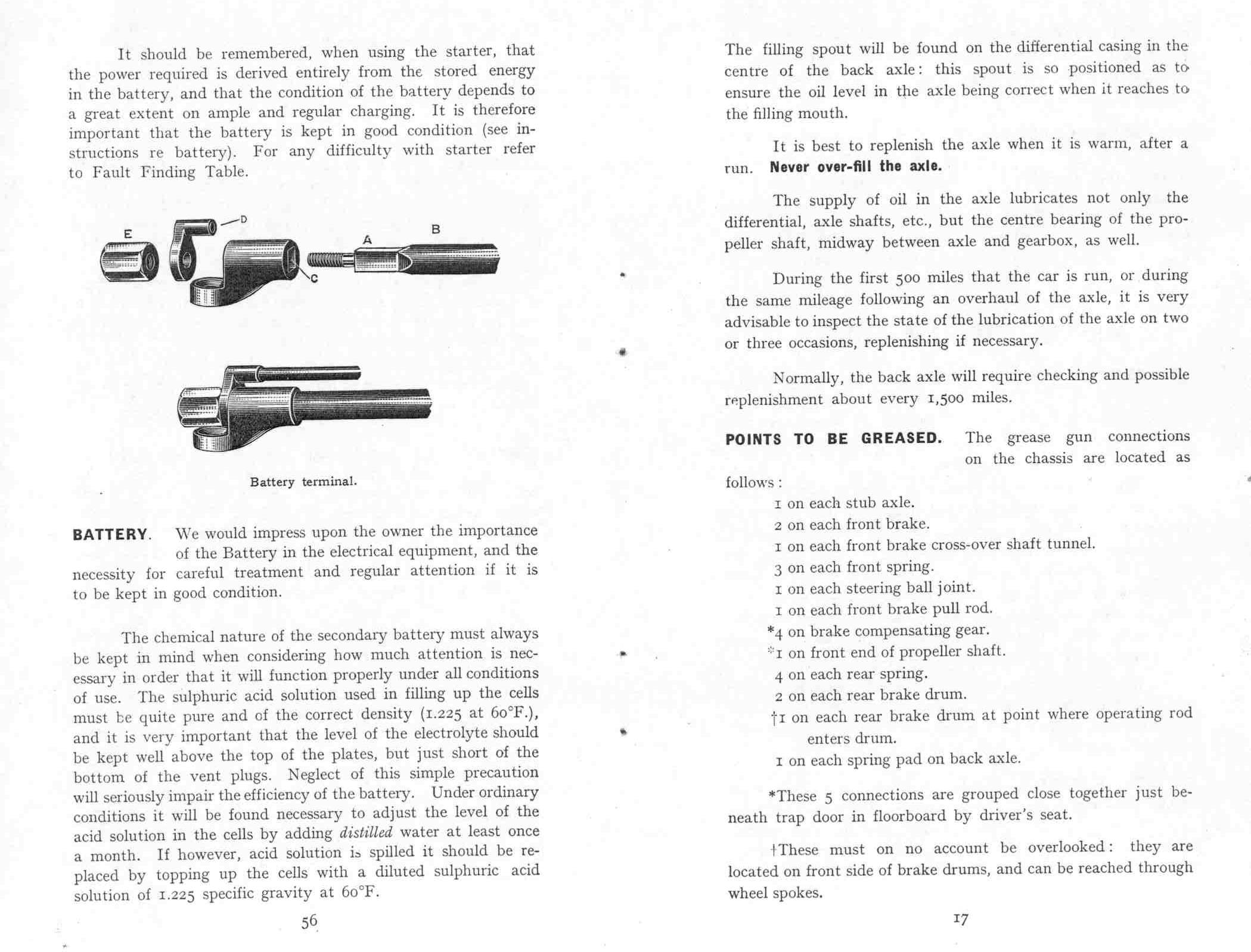

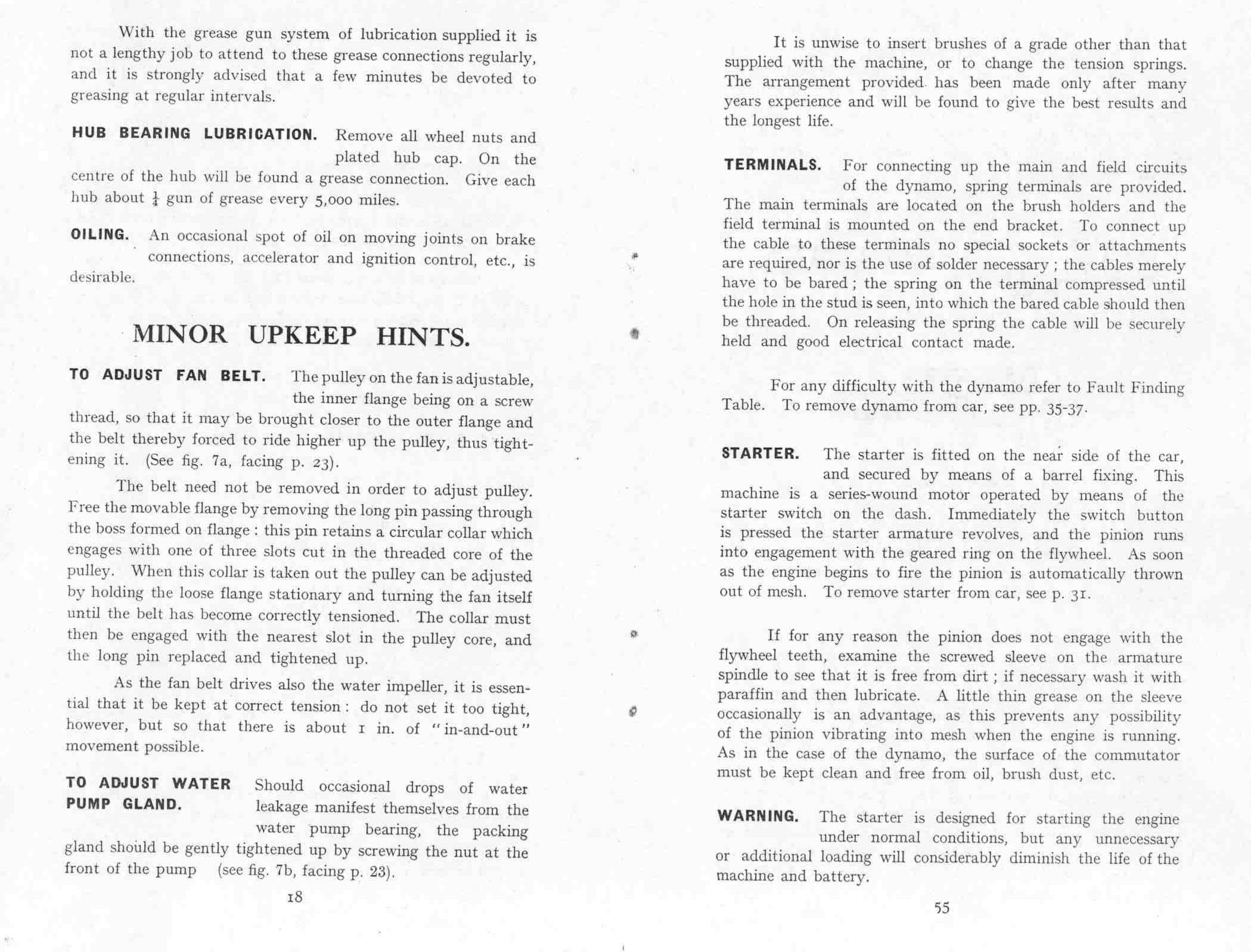

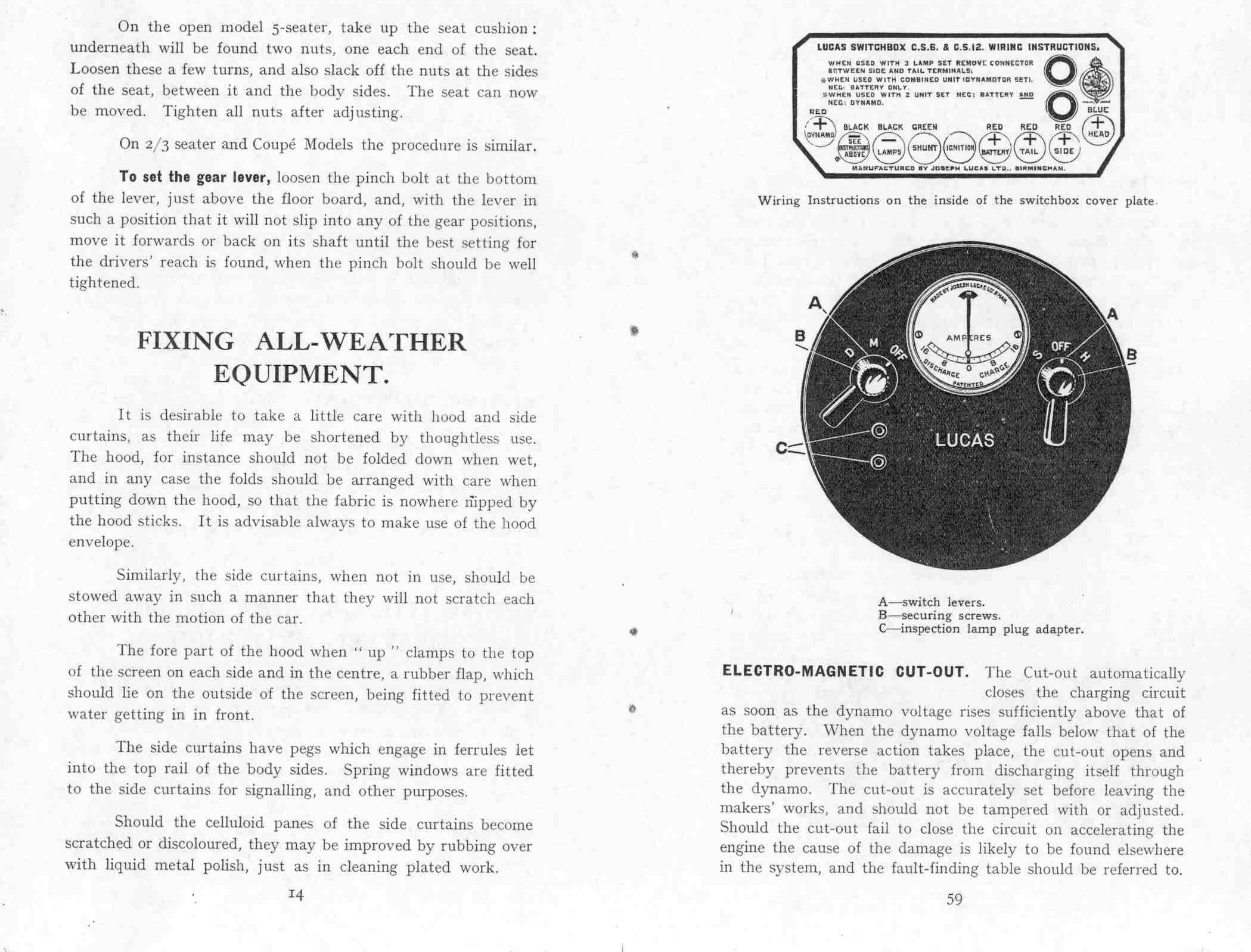

Index of the Rover 16/50 Manual page files

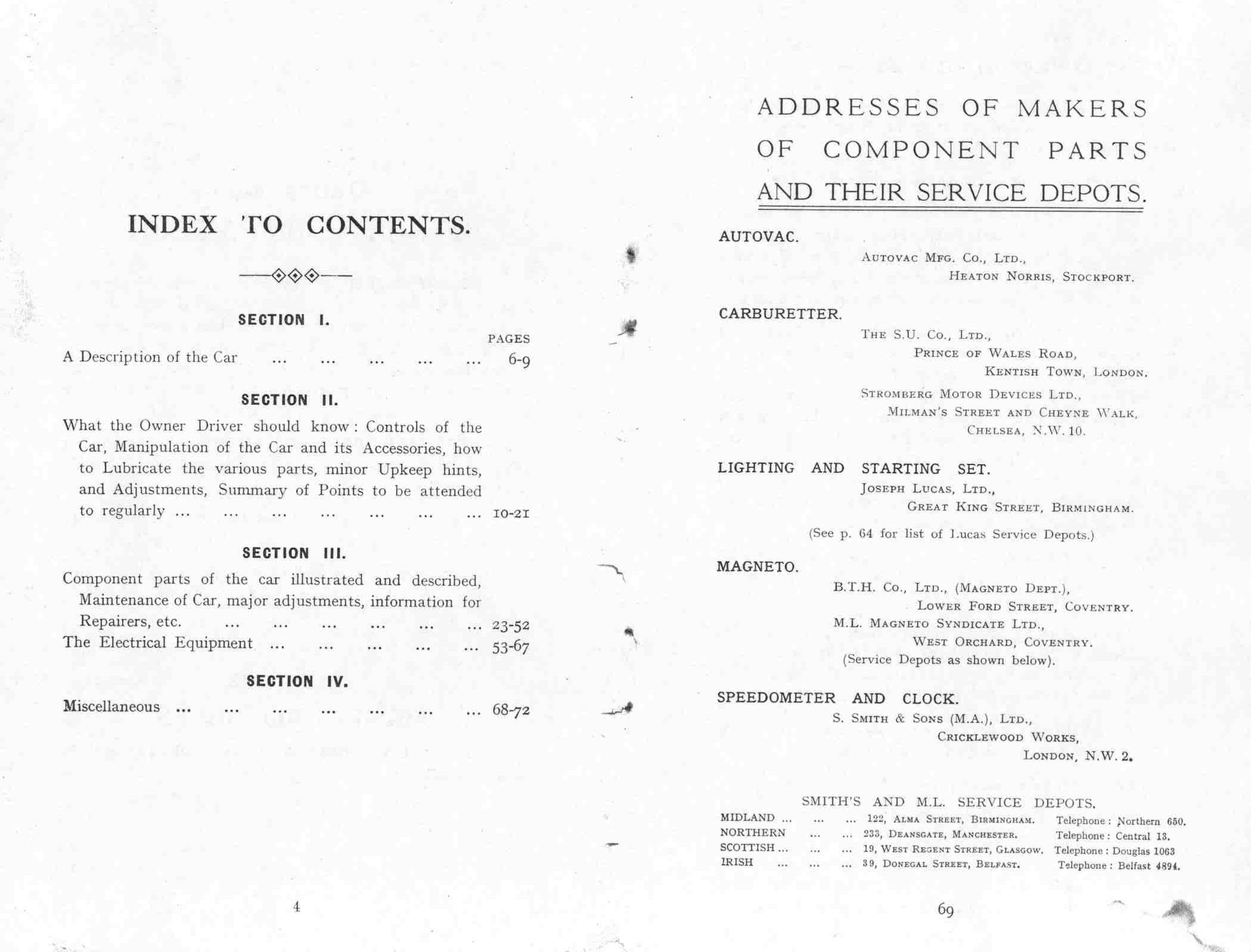

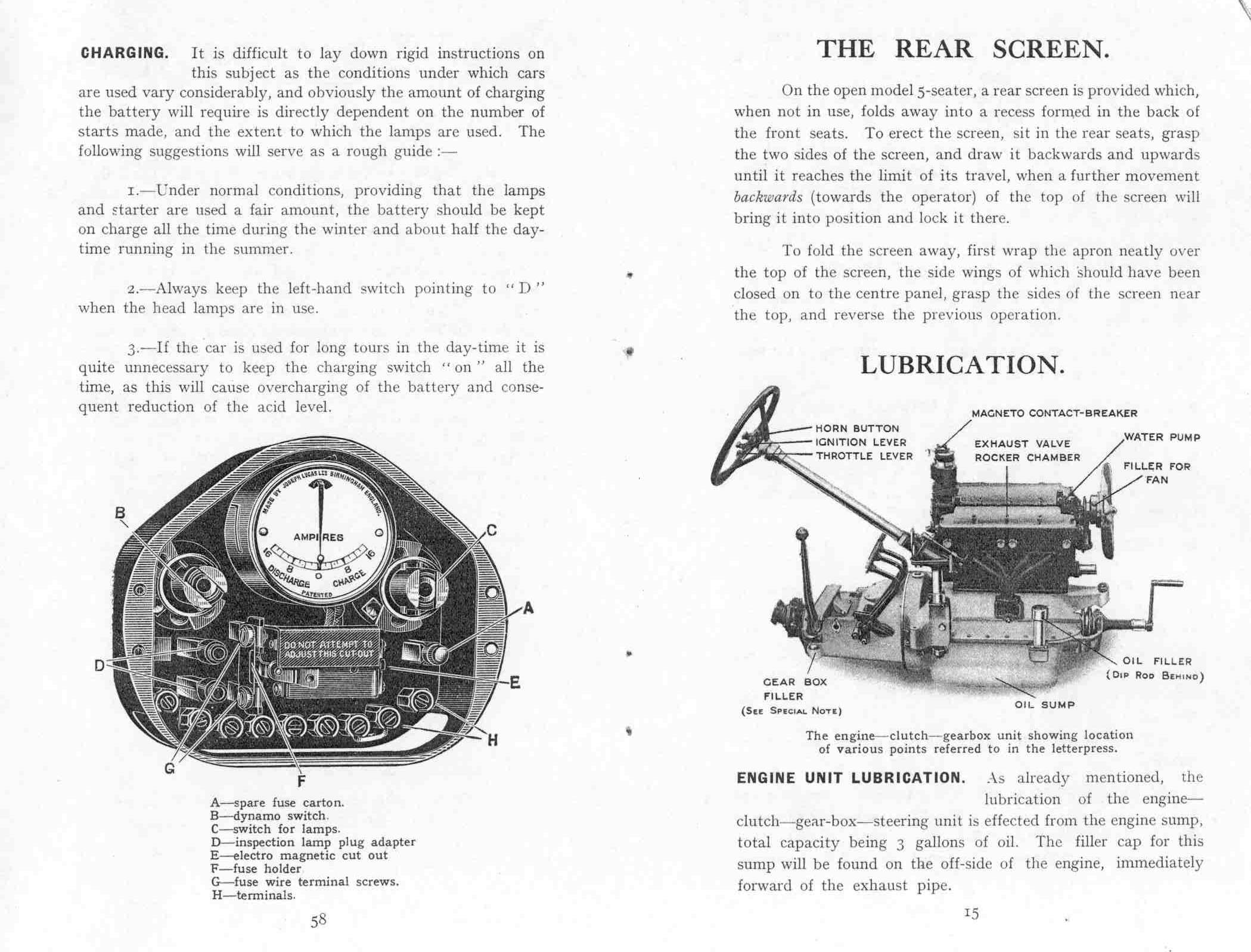

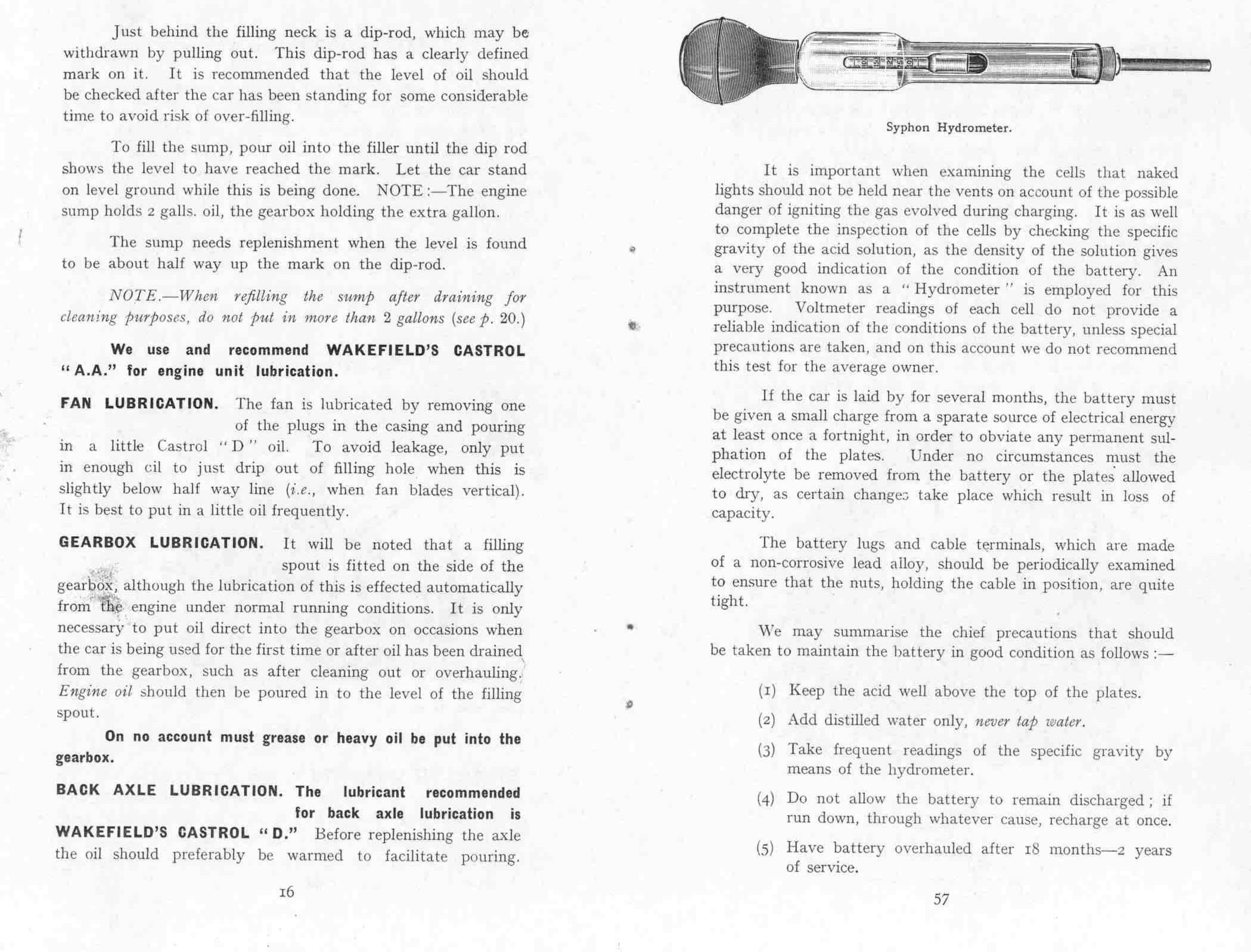

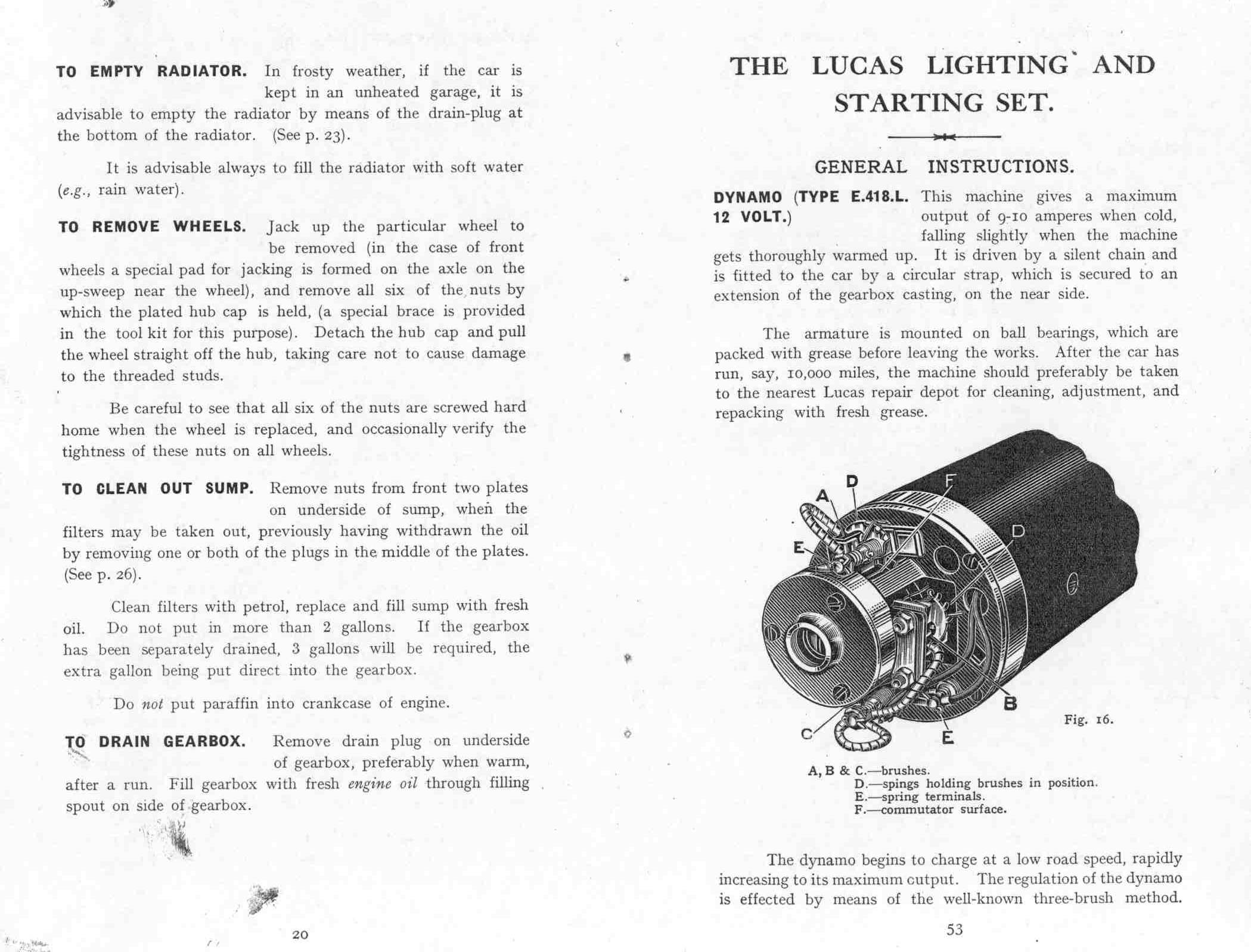

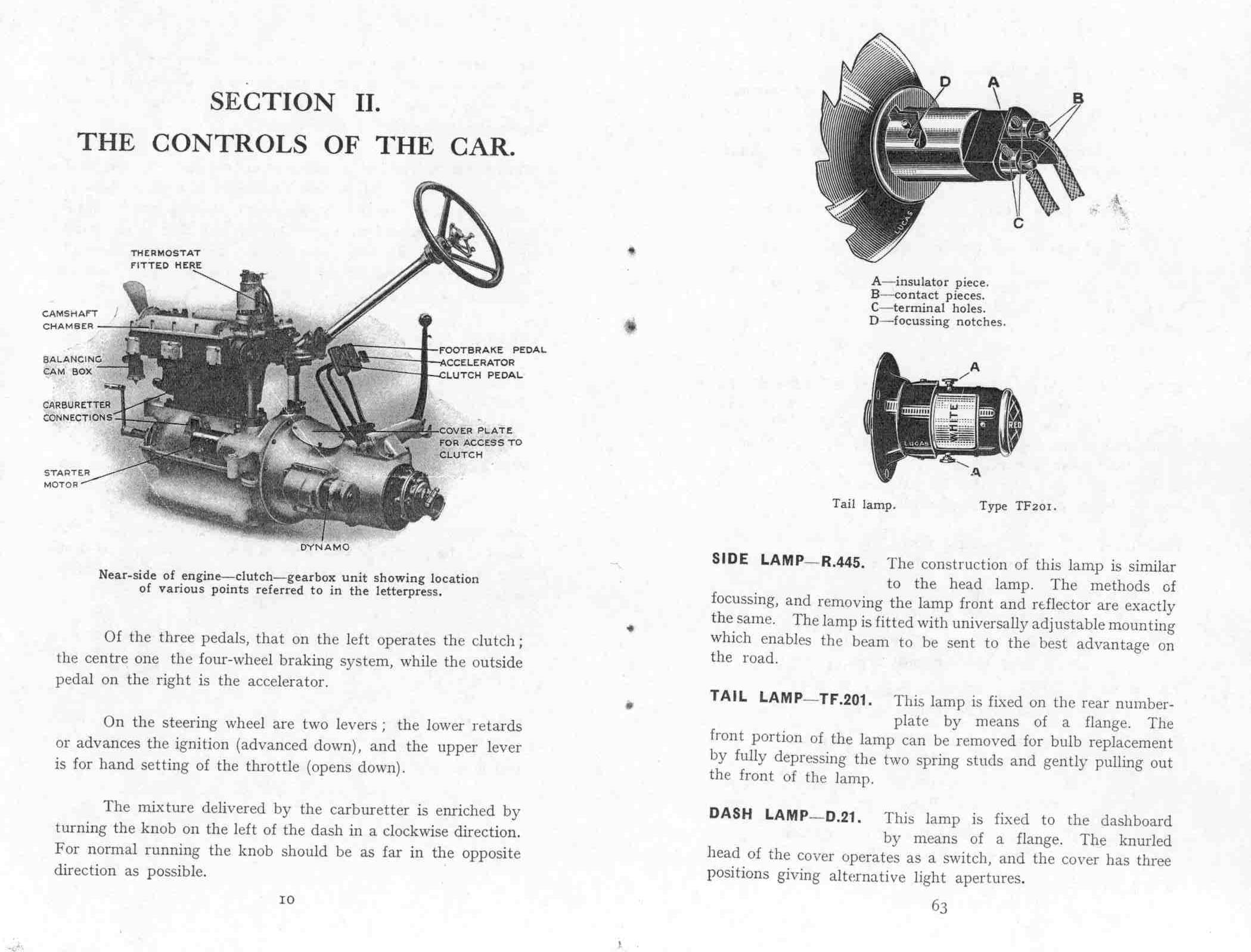

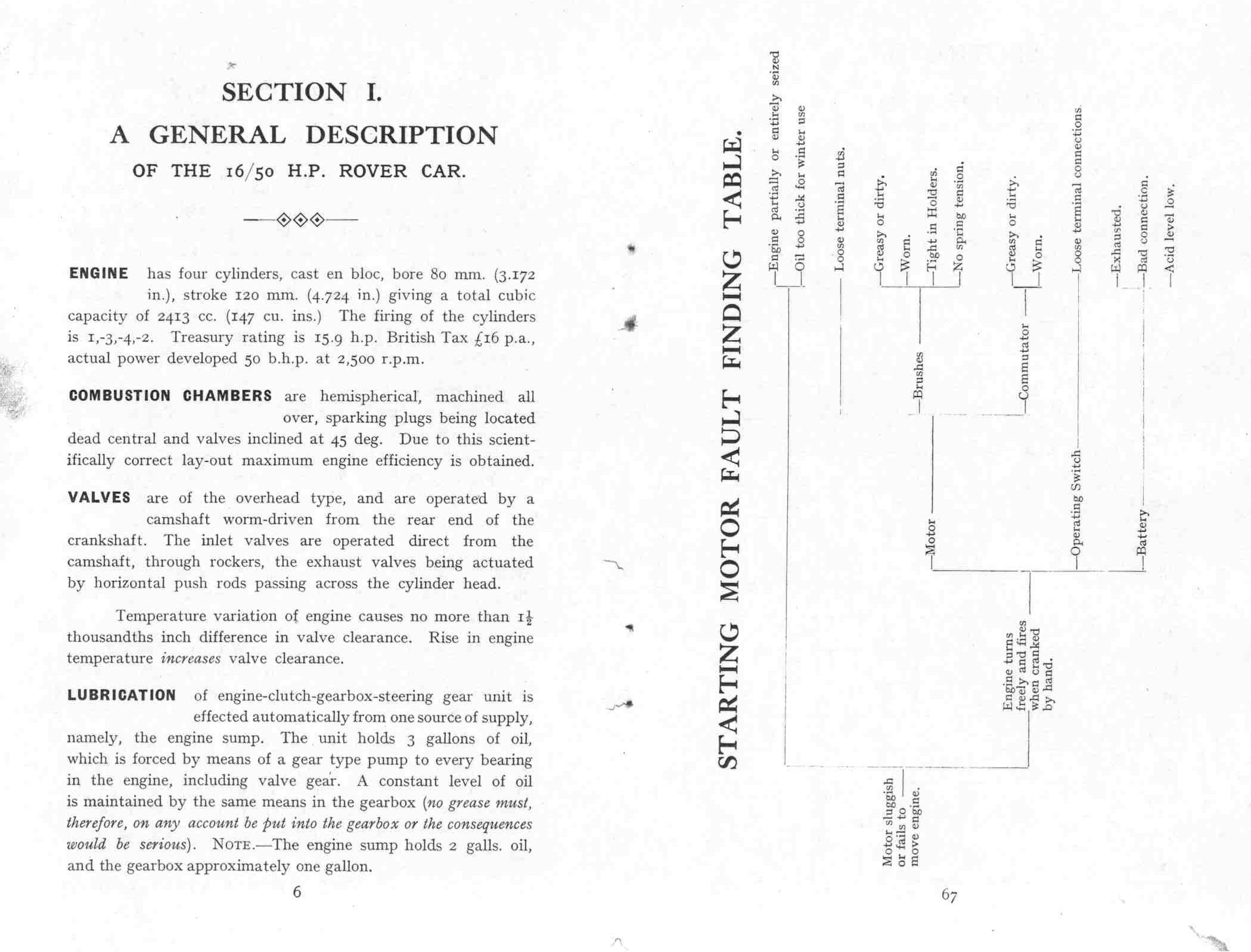

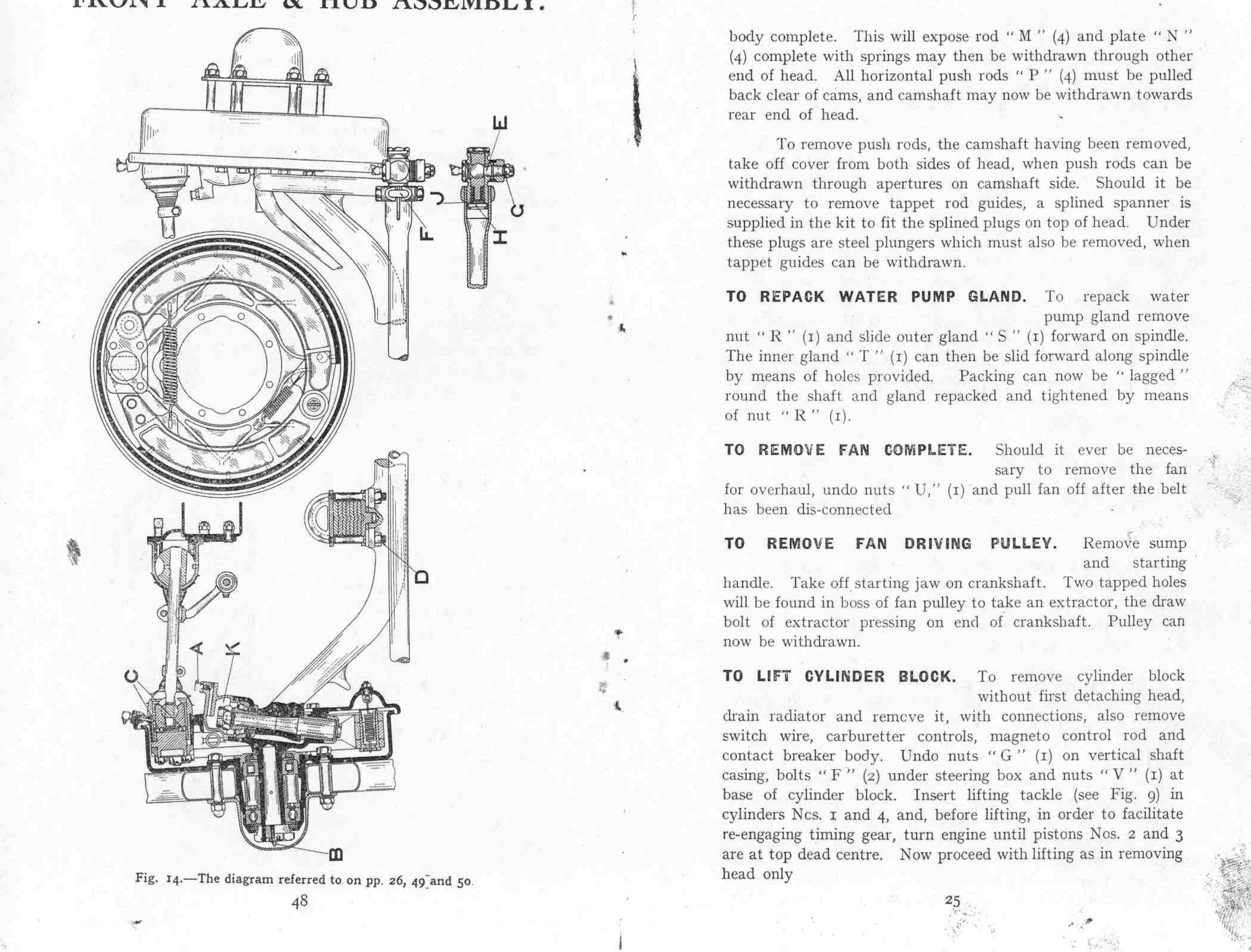

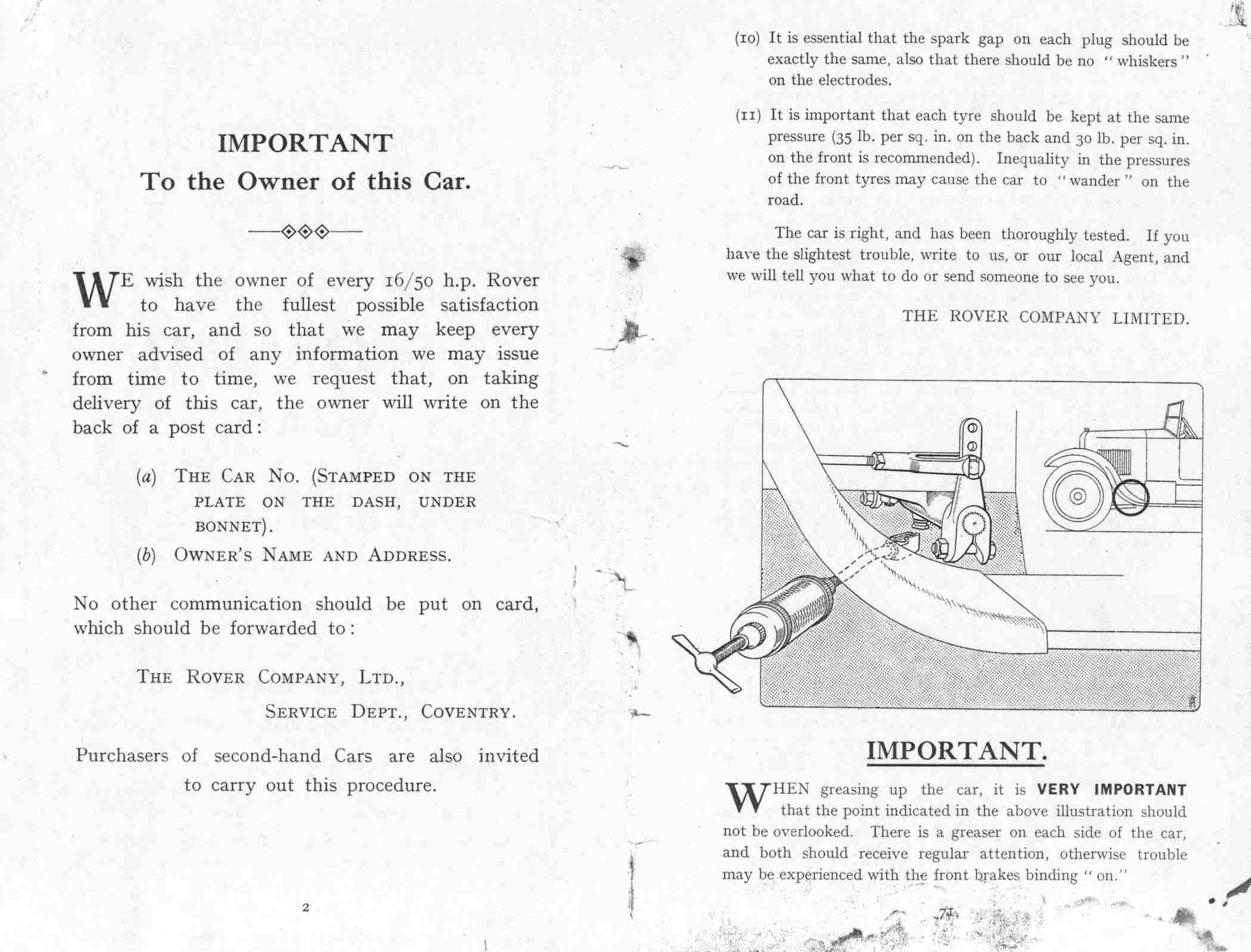

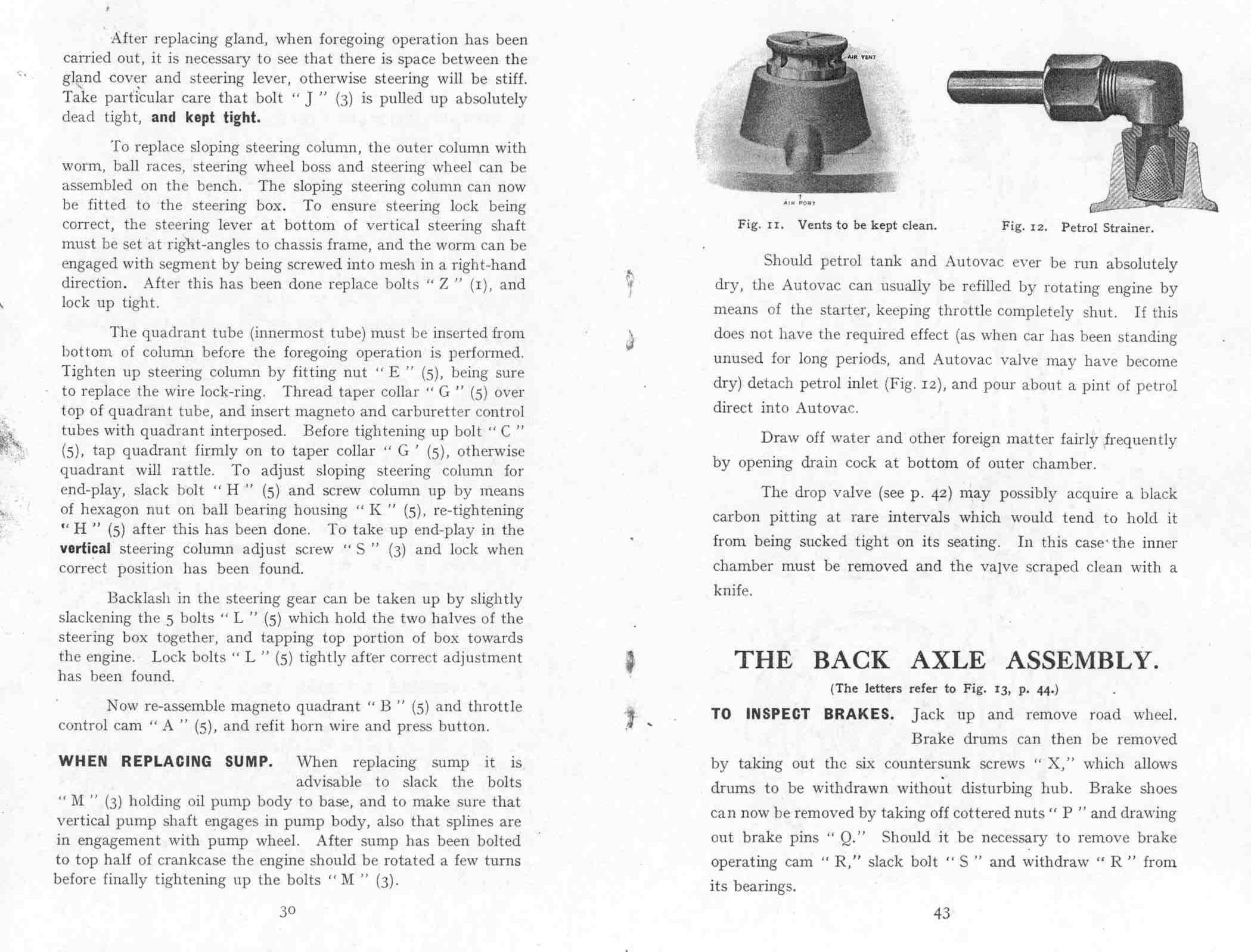

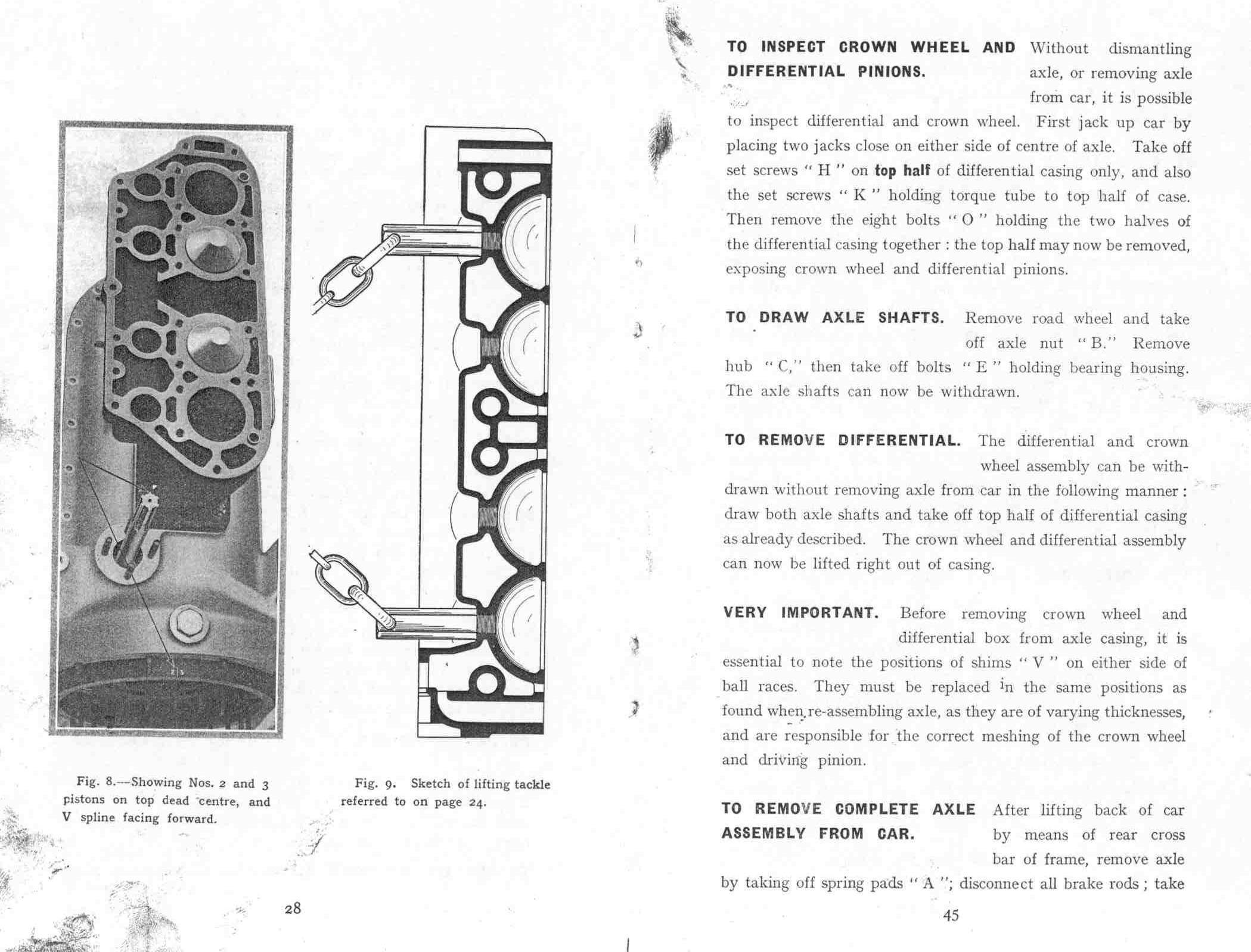

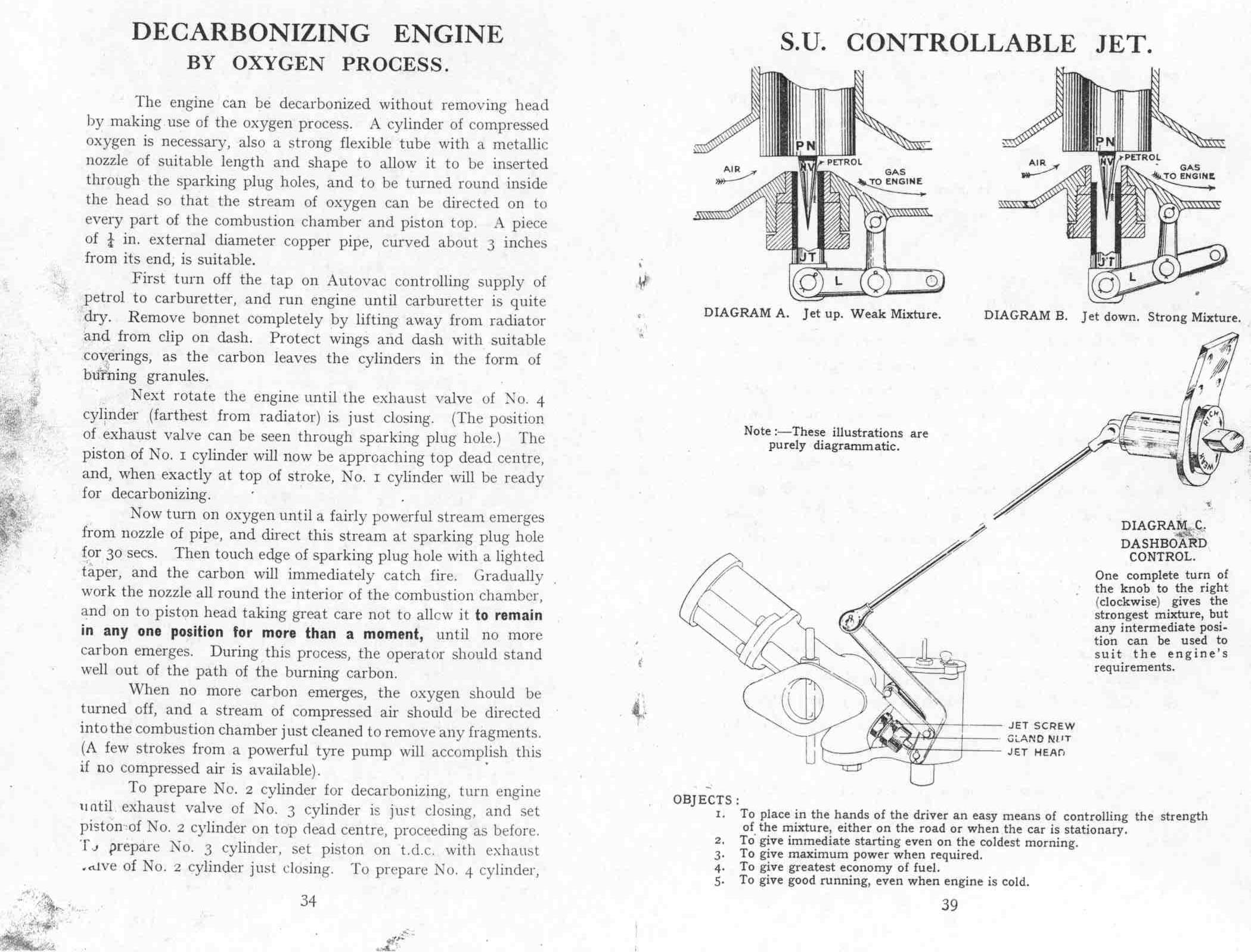

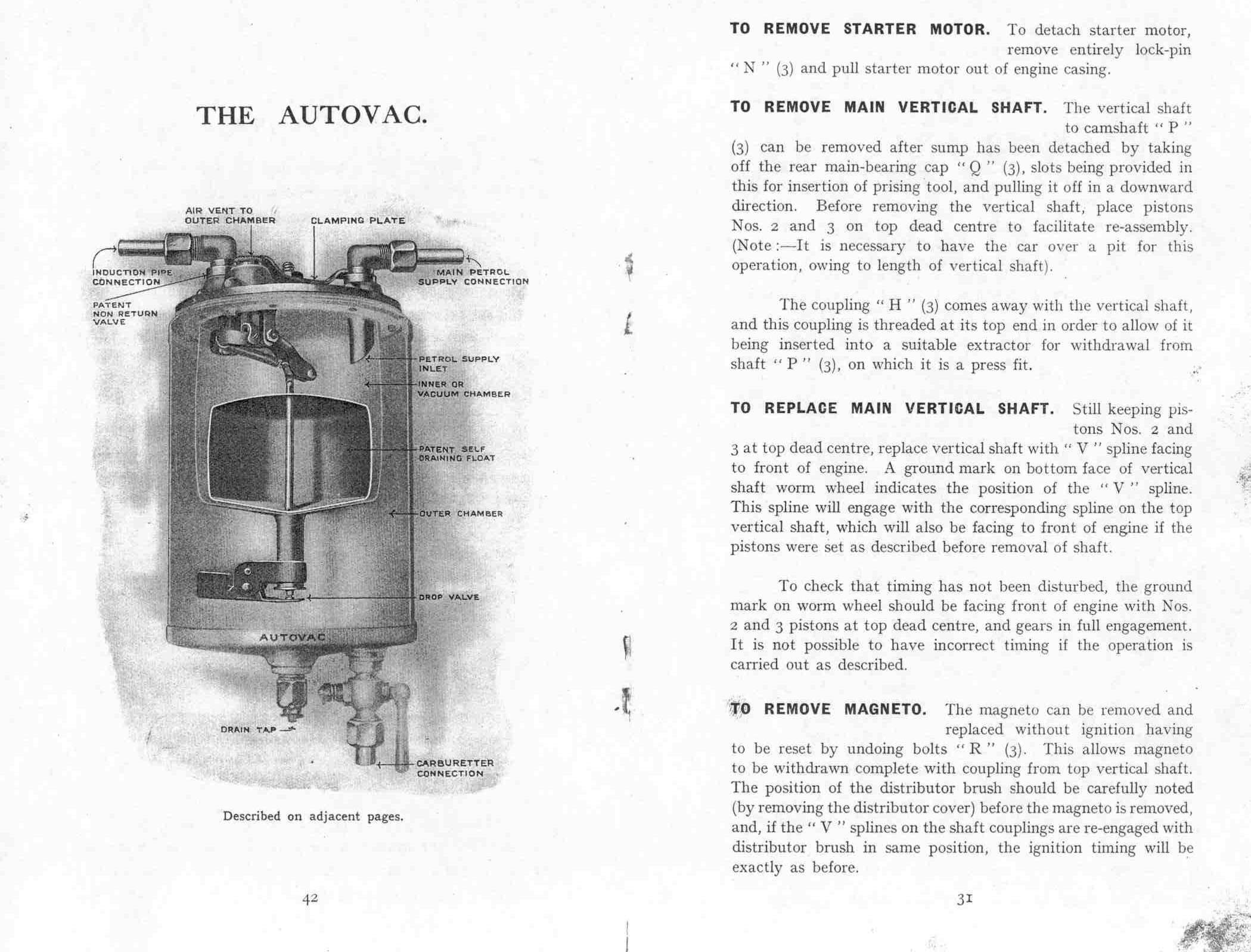

1 | 2 | 3 | 4 | 5

6 | 7 | 8 | 9 | 10

11 | 12 | 13 | 14 | 15

16 | 17 | 18 | 19 | 20

21 | 22 | 23 | 24 | 25

26 | 27 | 28 | 29 | 30

31 | 32 | 33 | 34 | 35

36

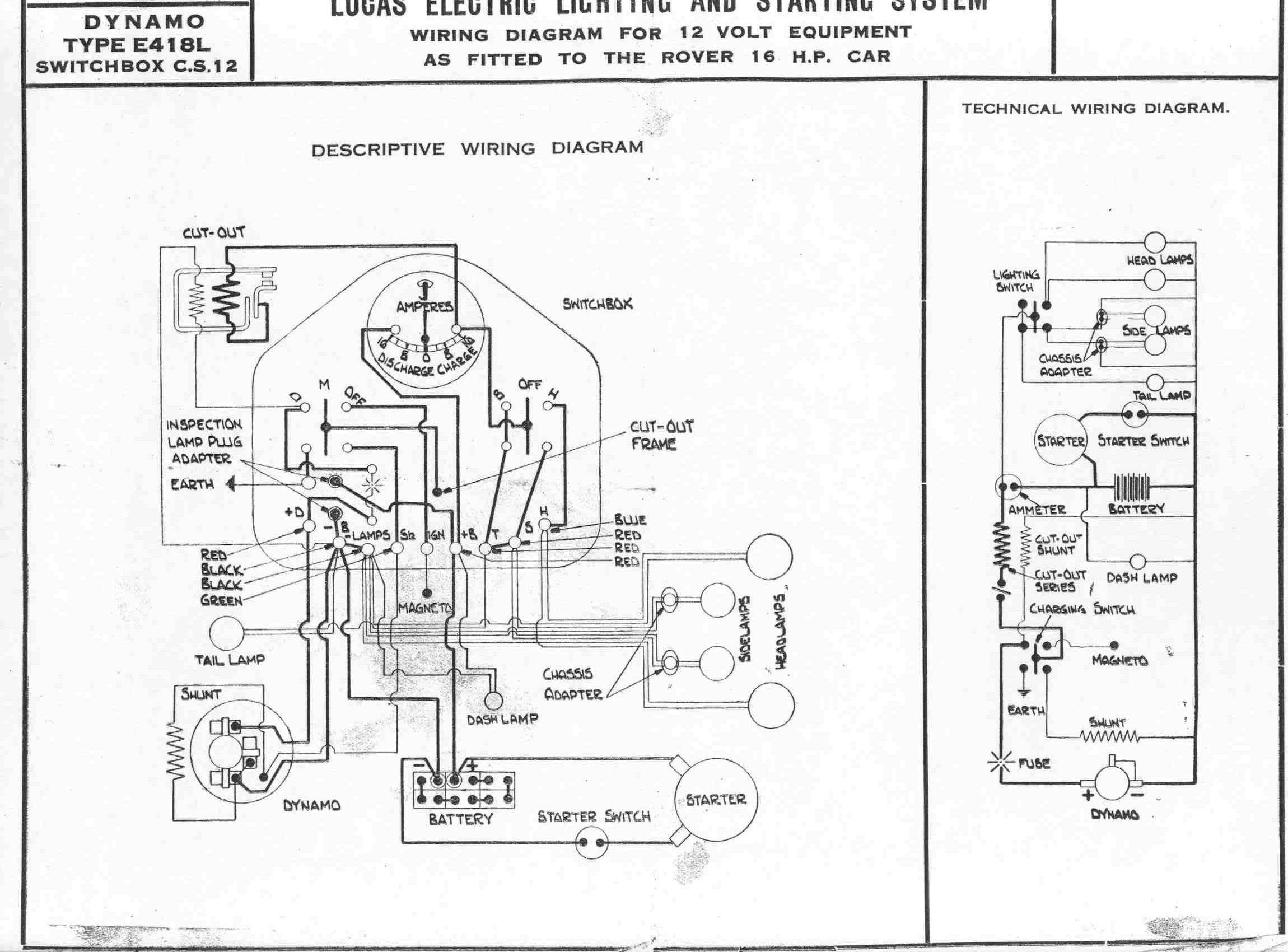

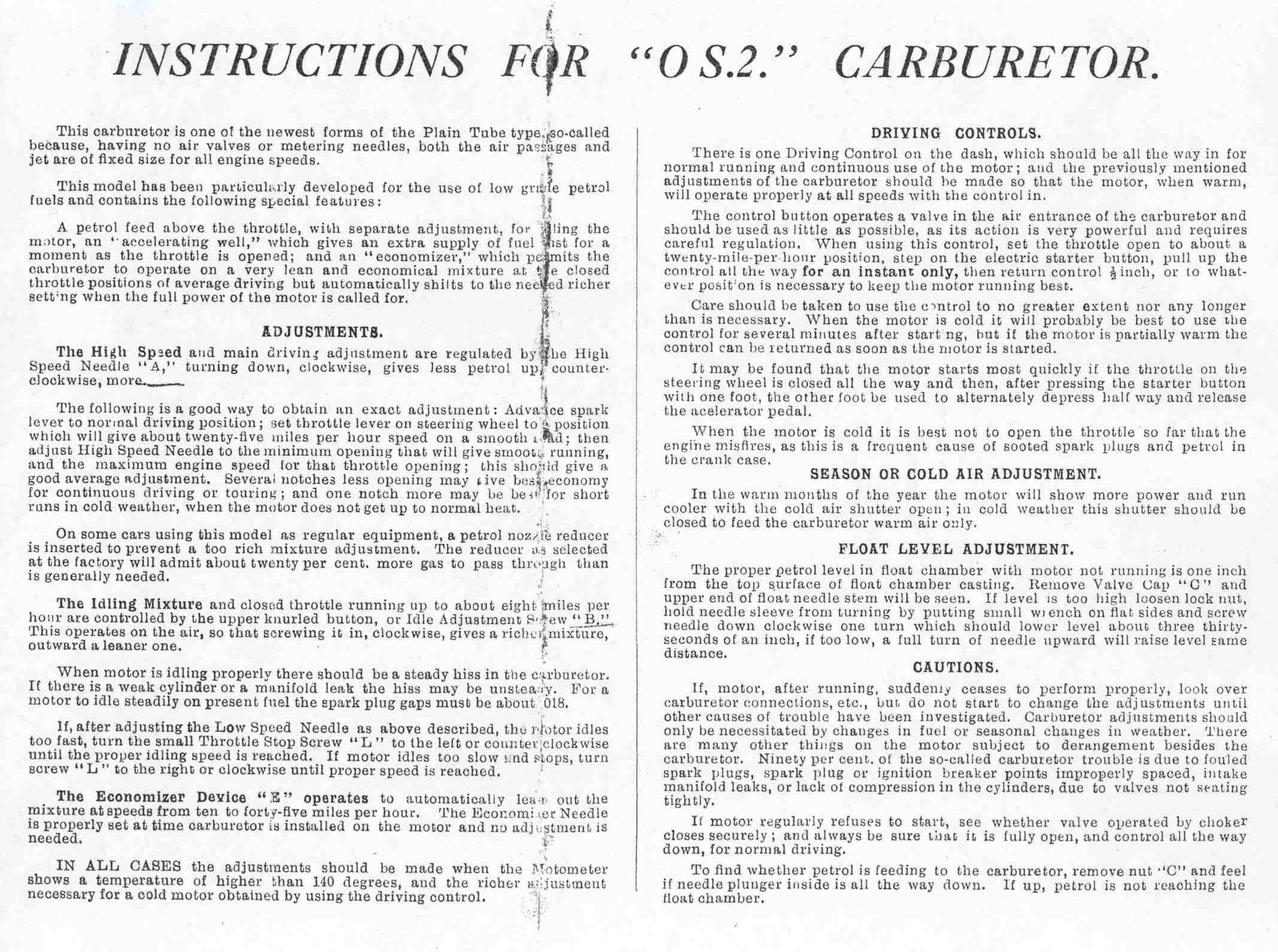

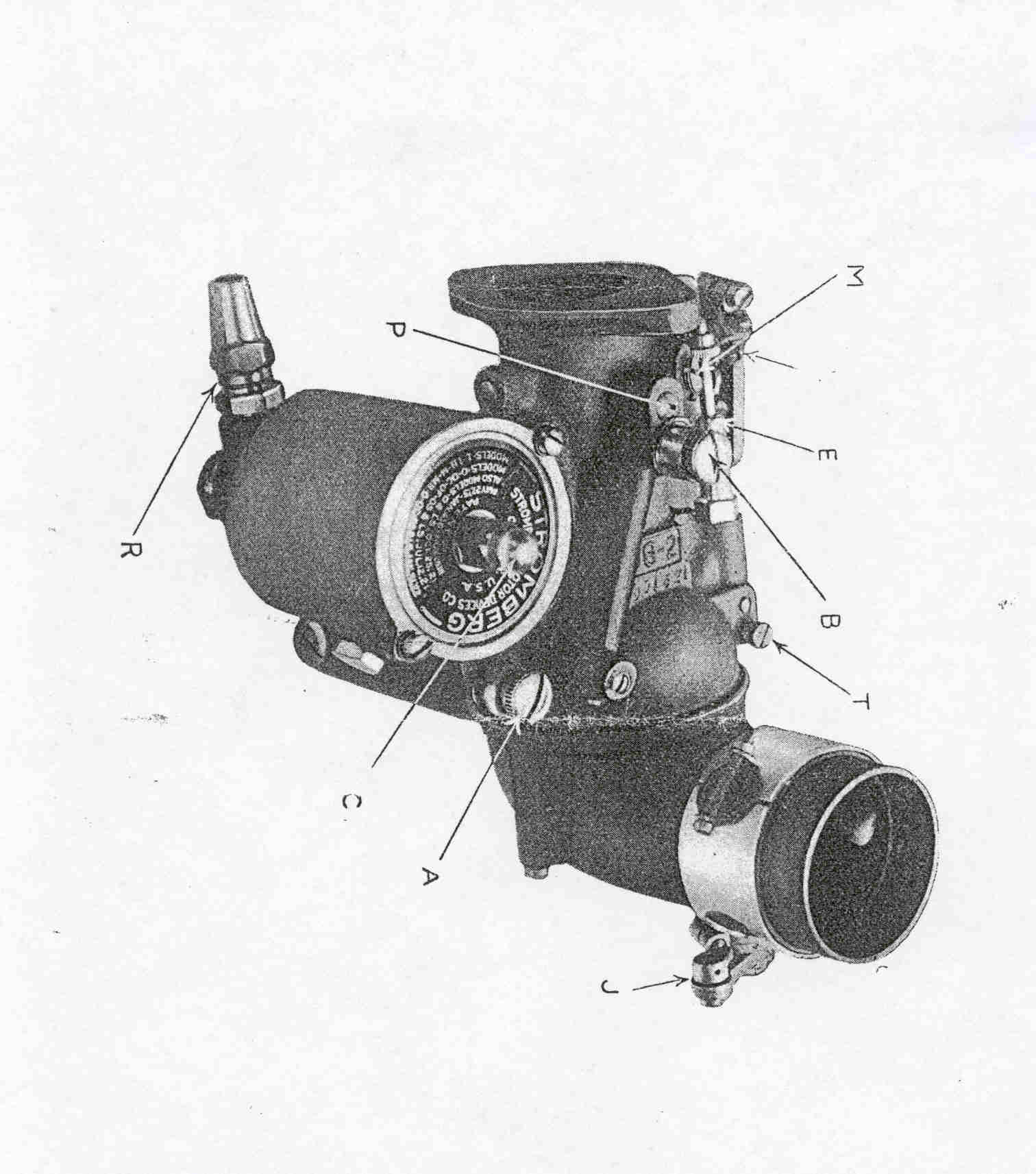

carb1 | carb2 | electrics

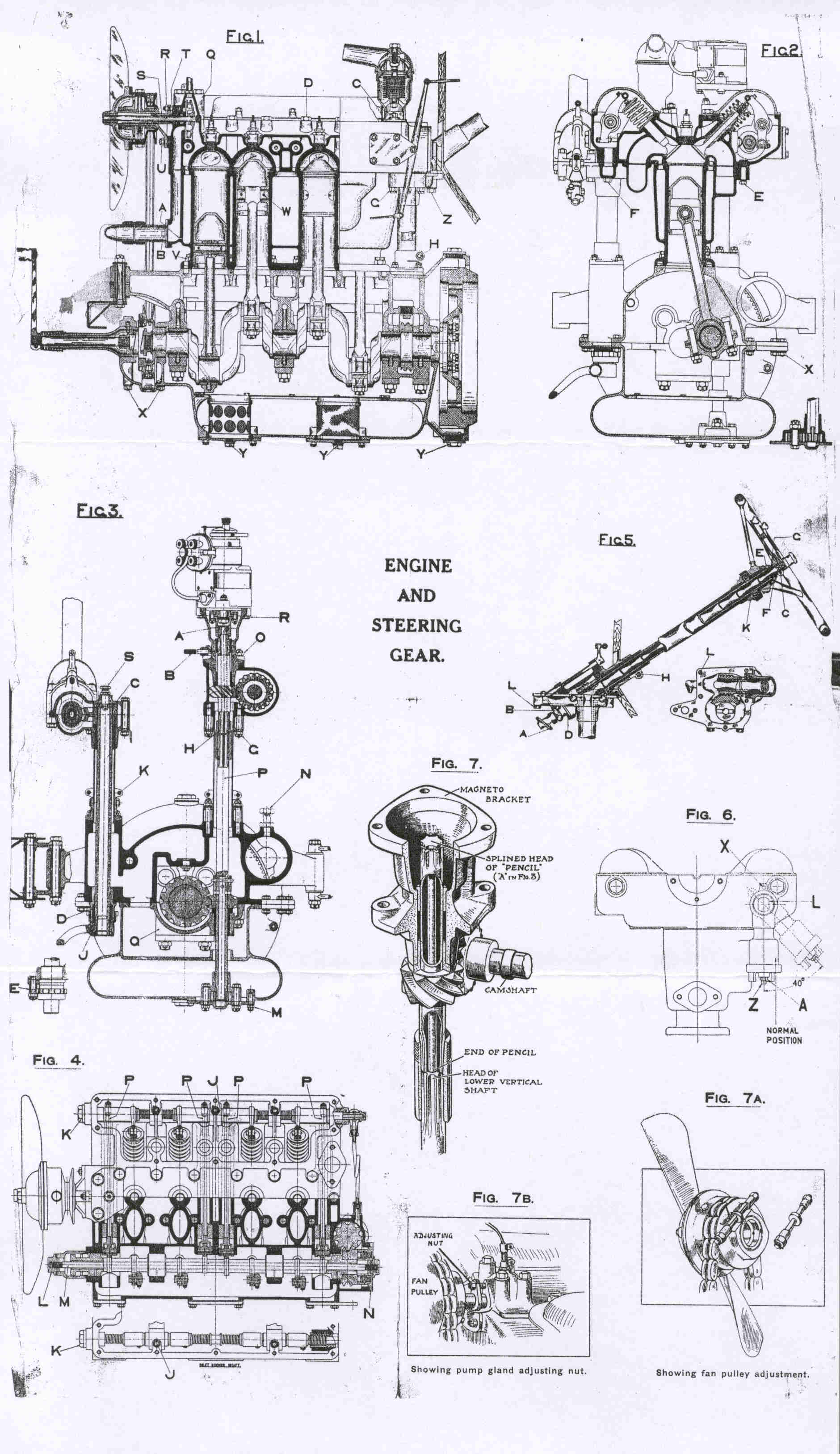

engine

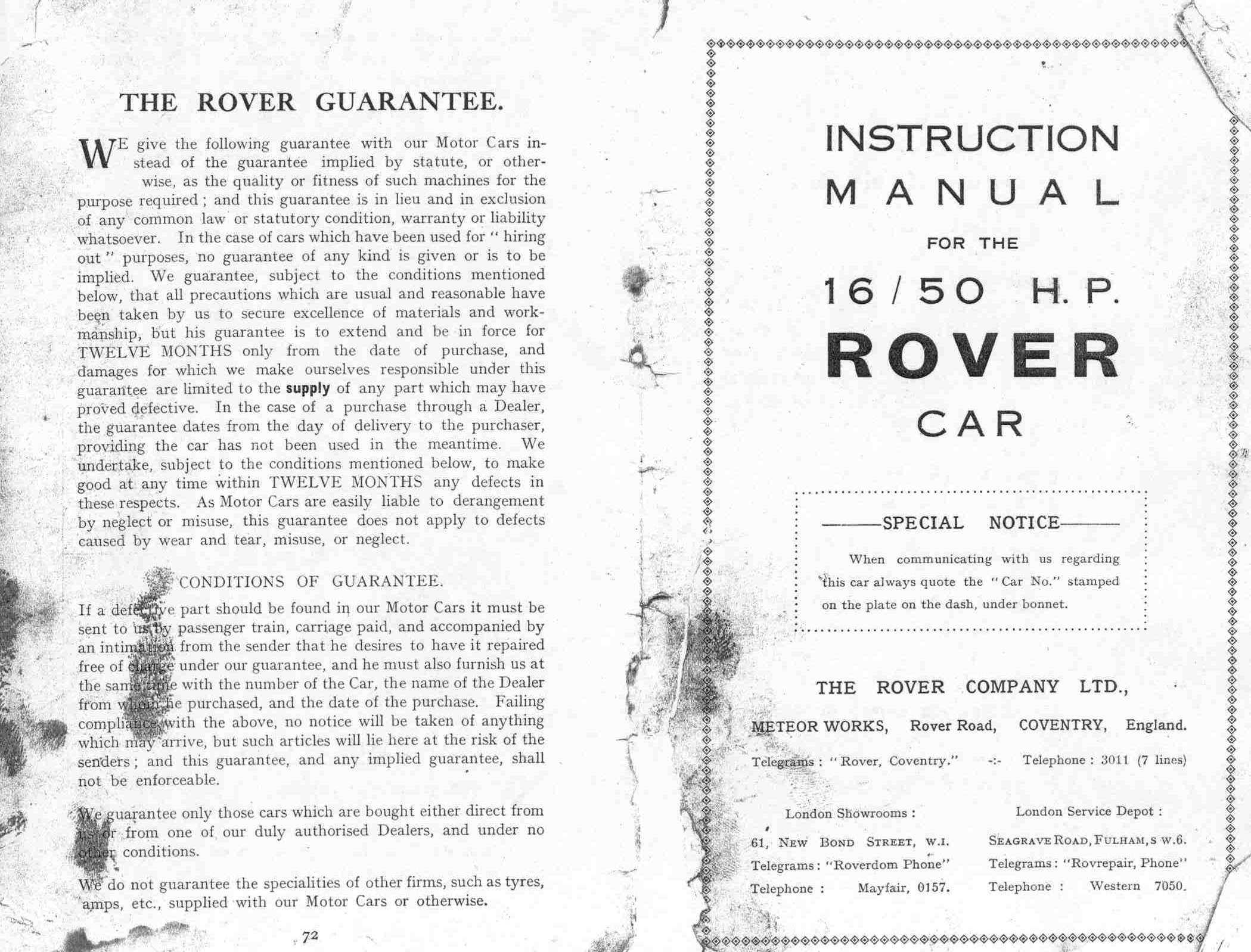

cover

Click here for a larger image of the Rover car
