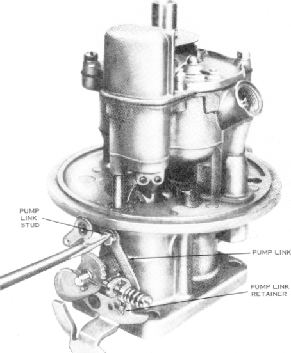

FIGURE 3. REMOVING PUMP LINK STUD

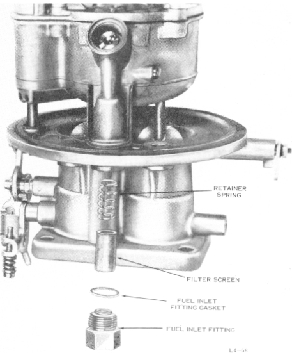

FIGURE 5. REMOVING FUEL INLET FITTING,
FILTER SCREEN AND RETAINER SPRING
2. Remove the pump link stud from
the pump
operating rod.
4. Remove the fuel inlet fitting
and gasket,
filter screen, and filter screen
retainer spring.
Discard the filter screen and fuel
inlet fitting
gasket.

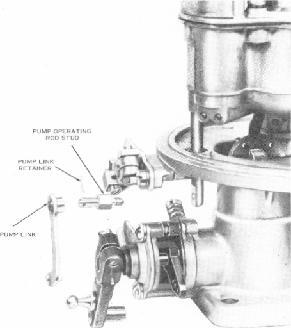

FIGURE 4. REMOVING PUMP LINK-GOVERNOR
EQUIPPED CARBURETOR
FIGURE 6. REMOVING MAIN BODY TO
THROTTLE
BODY SCREWS
5. Remove the two main body to throttle
body
screws and lockwashers.
3. Remove and discard the pump link
retainer
and the pump link.
