C. Disassembly - Main Body - All
Carburetors

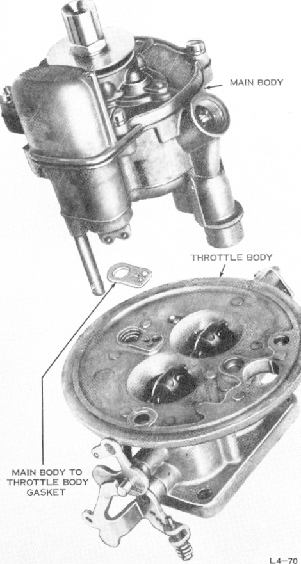

FIGURE 7. SEPARATING MAIN BODY FROM
THROTTLE BODY
6. Carefully lift the main body
off the throttle body
and discard the main body to throttle
body gasket.
Remove the pump rod felt seal, pump
rod washer,
(two washers, one above and the
other below the felt
seal, may be found on some carburetors)
and pump
rod spring. Discard the felt seal.

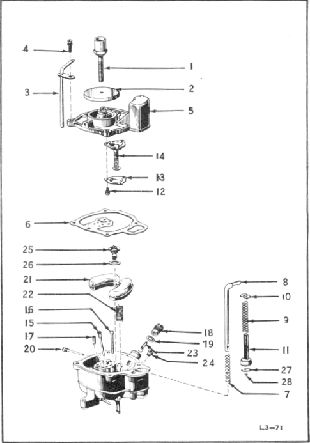

FIGURE 8. DISASSEMBLY-MAIN BODY
ASSEMBLY

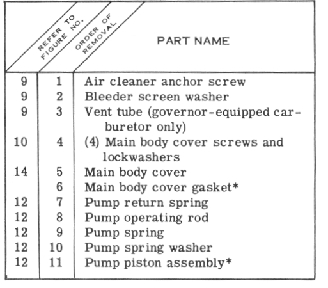

The following list contains all
the parts of the
main body in the order of their
removal. Parts
which are to be discarded and replaced
from a
master repair kit are marked with
an asterisk.
