in B2A-2004-A Kit dia.
51A 2174
Snap ring (brake master cylinder piston)-1-25/64"
irregular 0. D. and open end-also serviced in
B2A-2004-A Kit
1
LA
52-54
AB 2178-A
" Valve assy (master cylinder outlet)-serviced in
A9A-2178-A Kit
1
LA
52-54
A9A 2178-A
Kit (master cylinder valve and seat}-also serviced
in Kit B2A-2004-A-consists of the following
(1) AB-2178-A Valve (1) A9A-2179-A Seat
1
LA
52-54
LA 2178-B N
Valve assy (brake master cylinder outlet check)-
serviced in HDK-22160-B Kit
1
LA, LE
53-55
A9A 2179-A N
Seat (brake master cylinder outlet)-also serviced
in A9A-2178-A Kit-~%LA-22179-A
1
LA
52-54
,I
OA 2180
Hoot (brake master cylinder)-Rubber-also
serviced
1
LA
52-54
LA 2180-A N
Boot (brake master cylinder)-Rubber-serviced in
HDK-22160-H Kit
1
LA, LE
53-55
LA 2183-A
, Spring (brake master cyl, outlet valve)-15 32"
1
LA, LE
53-55
LA 2188-A
Plate (brake master cylinder piston stop)-9/16"
I. D. x 1-1/8" 0. D. x 1/8" thick
1
LA
52-54
8M 2190-A
Housing (front brake cylinder}-R. H.
1
LA
52-53
8M 2191-A
,~ Housing (front brake cylinder)-L. H.
1
LA
52-53

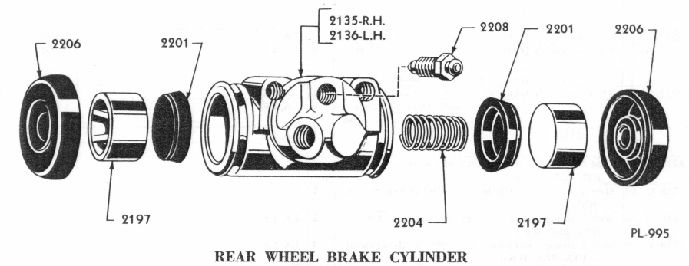

SL 2197-A
''~ Piston (rear wheel brake cylinder)-15/16" dia.
4
LA, LE
52-55
96H 2198-A
Piston (front wheel brake cylinder)-1-1/8" dia.
4
LA, LE
52-55
HCK 2200-A I
Kit (rear brake shoe & lining)-Standard-Axle Set-
consists of the following
(2) OM-2019-H Shoe & lining-rear-secondary
(2) LA-2218-B Shoe & lining-rear-primary
1
1
LA
52-53
