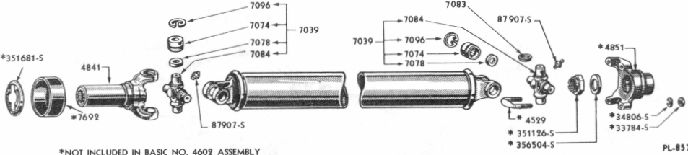

DRIVE SHAFT ASSEMBLY AND RELATED PARTS
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
PART NUMBER
C
L
A
PART NAME
NO
REQ
' D
MODEL
YEAR
19
OIY-4529
Bolt (universal joint 'lull)-"611-
24-drive shaft to rear axle
2
LA. LE
52-55
87907-S8
Fitting (lubricator)-1/4"-28 x
1/2"-for univ. joint spider
2
LA, LE
52-55
34806-S7
Lockwasher-5/16"-drive shaft
to rear axle
4
LA, LE
52-55
33798-S8
Nut (hex)-5/16"-24
4
LA, LE
52-55
LA-4602-A
Shaft & univ. joint assy (drive)
1
LA
52-54
LE-4602-A
Shaft & univ. joint assy (drive)
1
LE
55
8L-4841-B
Knuckle assy (univ. joint)-front
1
LA
52-54
LE-4841-A
Knuckle assy (univ. joint)-front
1
LE
55
OIY-7039
Kit (univ. joint)-consists of the
following
(4) OIY-7074 Bearing
(1) O1Y-7084 Spider
(4) OIY-7096 Snap ring
2
LA, LE
52-55
01T-7078-A
Seal (universal joint grease)
8
LA, LE
52-55
351681-S32
Nut (spring)-2-23/32" x
2-11/16" 0. D. x grip fit for
1-3/4" diameter shaft
1
LA, LE
52-55
01Y-7083
Ferrule (universal joint spider)
8
LA, LE
52-55
01Y-7096
Snap ring (universal joint spider
brg. retainer)
6or8 LA, LE
52-55
8L-7692
Shield (trans. ext. rear oil seal)
1
LA, LE
52-55
Frame
LA 5005-M
Frame assembly
1
LA76
52-53
LA 5005-S
Frame assembly
1
LA73
52-54
LA 5005-T
Frame assembly
1
LA60
52-54
LA 5005-U
Frame assembly
1
LA76
54
LE 5005-G
Frame assembly
1
LE73
55
LE 5005-H
Frame assembly
1
LE60
55
LE 5005-J
Frame assembly
1
LE76
55
