34848-S8
Lockwasher-7/16"-trans. to
cylinder block
6
LA
52-54
Also used in late 1952-transmission plate serial prefix LA-52
$ When replacing LA-7003-F or G on 1952 & 3 models, it will also be necessary to use (1) each of LA-9747-H, LA-77230-E and LA-77242-
D

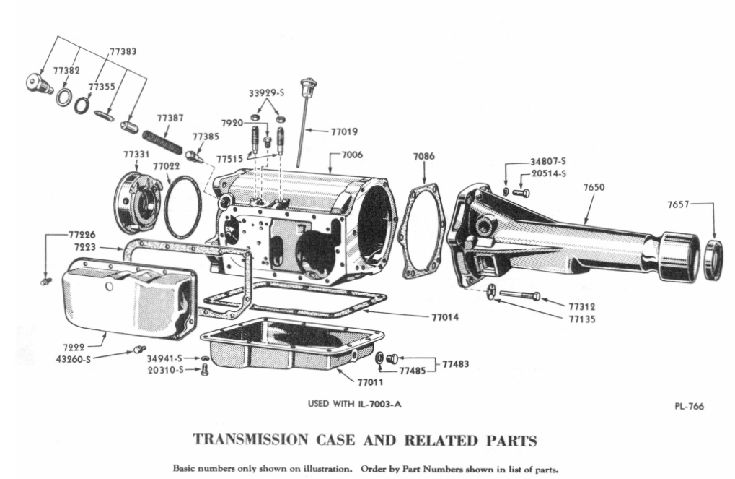

AUTOMATIC TRANSMISSION CHART
LA 7005-A
Case assembly (transmission)
LA 7005-B
Case assembly (transmission)
$ LA 7005-C
Case assembly (transmission)
B5S 7005-C
Case assembly (transmission)-  PMB-7005-C
1L 7006-A
Case (transmission)
8L-77008
Bolt (hex-,hd)-1/2"-13 x-1/2"-trans. to
flywheel housing
34809-S8
Lockwasher-1/2"-trans. to flywheel housing
20450-S Bolt (hex-hd)-7/16"-14 x 1-3/8"-trans. case
to converter housing
34848-S Lockwasher-7/16"
