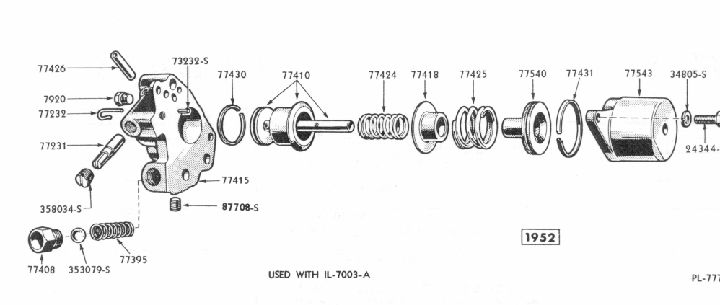

OL-77382
Gasket (trans. pressure regulator to
case)-Copper
-also serviced in LA-7874-A & B and
HBK-77383-A Kits
1L-77383-A
Plug assembly (trans. pressure regulator
valve)-
serviced in HBK-77383-A Kit
HBK-77383-A
Kit (trans. pressure regulator plugs
& gaskets)-
consists of the following
(1) OL-77355
Seal
(1) OL-77382
Gasket
(1) 1L-77383-A Plug (1) 1L-77384-A Valve
(1) 1L-77745-A Valve
1L-77384-A
Valve (trans. pressure regulator reverse
booster}-
29/64" diameter x 7/8" long
serviced in
HBK-77383-A Kit
8L-77385
Valve (trans. front pump pressure regulator)
LA-77385-B
Valve & cushion assy (trans. front
pump pressure
regulator)
1L-77387-A
Spring (transmission oil pressure regulator)-
3/4" O. D. x approx. 2-21/32"
free length
LA-77387-A
Spring (transmission oil pressure regulator)-
3/4" O. D. x approx. 2- 11/64"
free length
8L-77388
Kit (transmission governor drive flange)-
consists of the following
(1) 8L-77389-B Flange
(1) 72909-S Pin
8L-77389-B
Flange (trans. governor drive)-serviced
in
8L-77388 Kit
