1P-77326-A
Retainer (trans. parking pawl toggle
lever
support pin)-9/16" 0. D. x 1/4"
wide
1L-77327-B
Stop (transmission parking blocker piston
spring)
1L-77328-A
Piston (trans. parking blocker)-11/16"
0. D. x
13/16" long
LA-77328-A
Piston (trans. parking blocker)-11/16"
0. D. x
63/64" long-slotted
LA-77328-B
Plug (over-run control valve spring)-changed
to LA-7202-A then to LA-77206-A
HBK-77330-A
Kit (transmission front pump screws
& washers)-
consists of the following
(3) 8L-77336 Washer (1) 1L-77339-A Bolt
(3) 352792-S Bolt (1) 34805-S8
L/Washer

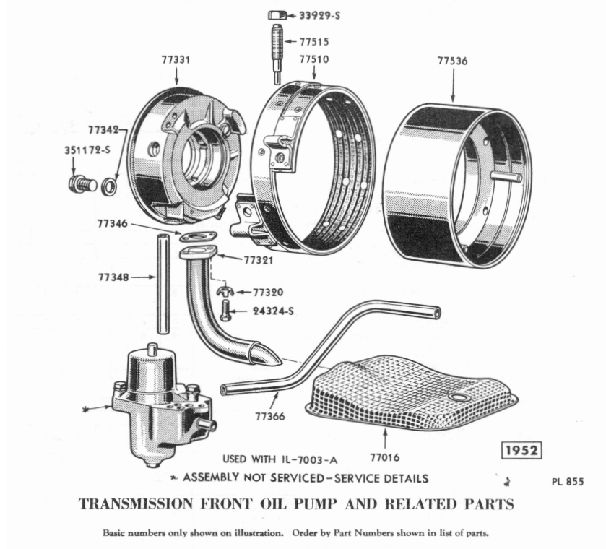

1L-77331-A
Pump assembly (transmission front oil)
LA-77331-A
Pump assembly (transmission front oil)-
letter "S" stamped on face
of cover
351772-S
Bolt (hex washer head)-5/16"-18
x 1/2"-
pump assembly to transmission case
20310-58
Bolt (hex-hd)-5/16"-1/2" x
1/2"
352980-S
Lockwasher (internal tooth)-1/4"-pump
body to cover
