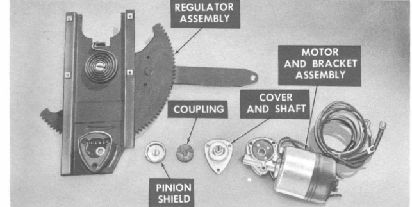

Single Arm Type Motor and
Bracket Support Assembly
REMOVAL
Remove the window regulator assembly from the quarter panel. Clamp the
assembly tightly in a vise and unload the spring.
Remove the three screws and washers that hold the motor and bracket
support to the regulator assembly. Remove the motor and gasket.
Remove the cover and shaft from the motor and bracket support. Remove
the rubber gasket and tapping plate from the regulator assembly.
Remove the coupling, pinion and shield assembly from the regulator
assembly.
INSTALLATION
Assemble the coupling, pinion and shield assembly to the regulator
assembly. Install the rubber gasket and tapping plate. Position and install
the cover and shaft to the motor and bracket support.
Position the motor and bracket support on the regulator assembly and
install the three attaching screws and lockwashers. Load the regulator
clock spring approximately one-half turn and install the assembly in the
quarter panel.
