SERVICE PROCEDURES

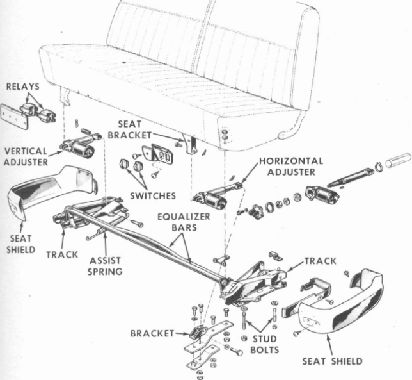

Replacement of Seat Track Assembly
with Seat Attached
Move the seat to forward position and then disconnect the battery
ground cable. Remove both the seat shields.
Remove the seat track stud bolts from the bottom of the floor pan.
Remove the clevis pin holding the horizontal adjuster to the floor pan.
Remove the seat back and tilt the seat backward. Detach the lead from the
circuit breaker to the relay. Remove the seat track assembly with the seat
frame attached.
To install, reverse the procedures for removing the assembly.
