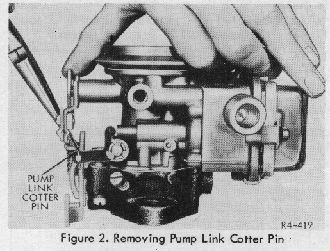

(1) Remove and discard the upper pump link cotter
pin. Disengage the upper end of the pump link from
the pump operating lever.

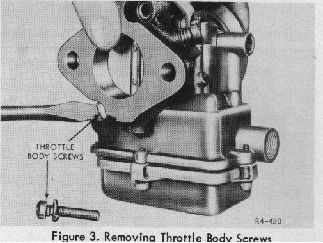

(2) Remove the two throttle body screws and
lockwashers. Separate the throttle body and main
body and discard the throttle body gasket.

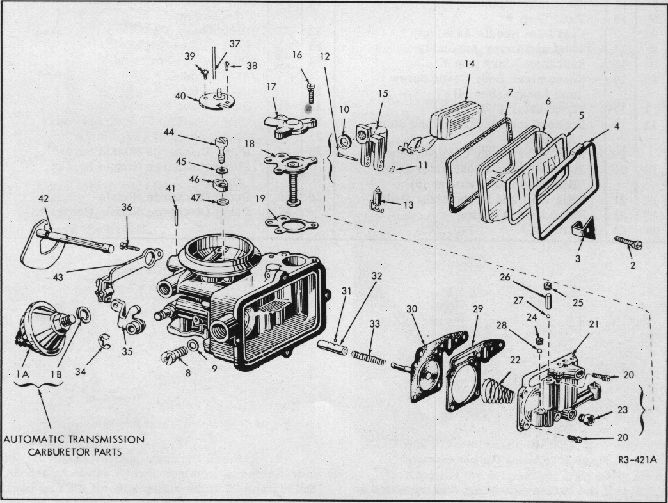

FIGURE 4. DISASSEMBLY - MAIN BODY ASSEMBLY
