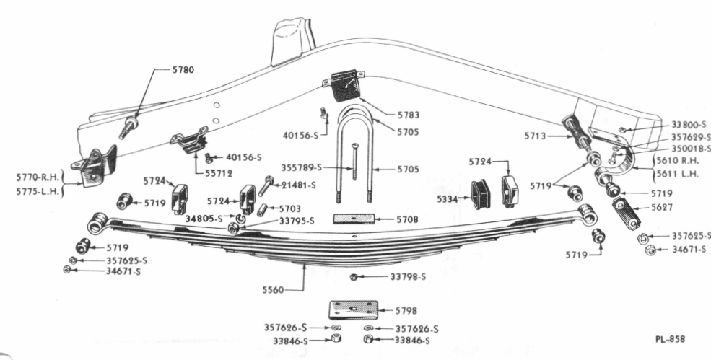

REAR SPRINGS, HANGERS AND CLIPS
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
PART NUMBER
L
S
PART NAME
S
MODEL
YEAR
19
LA 5610-A
Hanger (rear spring shackle)-rear-R. H.
1
LA, LE
52-55
LA 5611-A
Hanger (rear spring shackle)-rear-L. H.
1
LA, LE
52-55
350018-S2
Bolt (hex-hd)-3/8"-24 x
6
LA, LE
52-55
357629-S7
Lockwasher-3/8"
6
LA, LE
52-55
33800-S8
Nut (hex)-3/8"-24
LA, LE
52-55
OM 5627-B
Bar (rear spring shackle)-outer-also serviced in
HCK-5630-A Kit
LA, LE
52-55
357625-S7
Lockwasher-7/16"
LA, LE
52-55
34671-S Nut (hex)-7/16"-20
4
LA, LE
52-55
HACK 5630-A
Kit (rear spring rear shackle & front bolt)-consists
of the following
(1) OM-5627-B Bar
(1) OM-5713-B Shackle
(6) 8M-5719
Bushing (1) 8M-5780-A Pin
(3) 357625-S
L/W
(3) 34671-S8
Nut
LA, LE
52-55
8A 5703
Spacer (spring clamp)-11/32" O. D. x " long-
slotted
LA
52-54
8L 5705-F
Clip ("U" bolt rear spring)-1/2"-20 x 8-19/64"
overall length
LA
52-53
8L 5705-G
Clip ("U" bolt rear spring)- 1/2"-20 x 8-23/32"
overall length
4 1
LA, LE
52-55
357626-S7
Lockwasher (special)
LA, LE
52-55
33846-S8
Nut (hex)-1/2"-20
8
LA, LE
52-55
8M 5708
Plate (rear spring center bolt)
LA, LE
52-55
II
1
